DESIGN CORNER

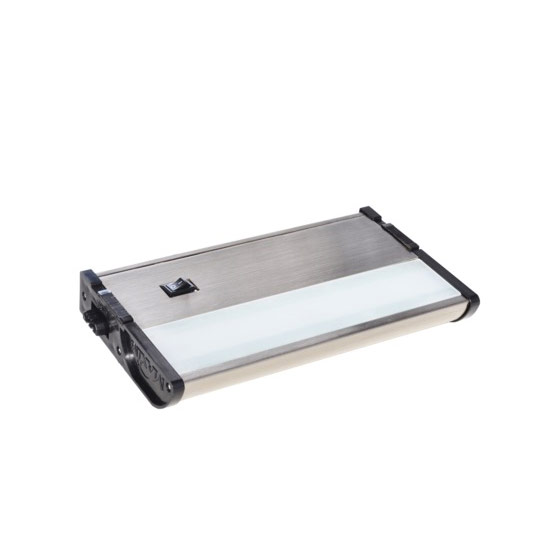

CounterMax MX-L120DL 7" 2700K LED Under Cabinet

89932SN

Collection: CounterMax MX-L120-DL Click for Addtional Information on the Cubic Collection
Type: Under Cabinet

Material: Aluminum + Acrylic

Finish: Satin Nickel
SN
Finish Options
  • Satin Nickel

LAMPING


Light Type: LED

Bulb Type: PCB LED
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 5.1

Fixture Max Wattage: 5.1

Rated Life: 50,000 Hours
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 289
A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 2700 K
This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
CRI: 80+

Dimmable: Standard Triac/Lutron® or Leviton® CL

Input Voltage: 120

MEASURMENTS


Width: 4"

Height: 1"

Length: 7"

Hanging Weight: 1.14 lb.

UPS Shippable: Yes
Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

CERTIFICATIONS/ OTHER


Safety Rating: Dry



The MX-L120-DL features the same low profile frame of the MX-L120DC and also full dimmability but with an increased lumen output. Featuring the new LG 5630 LED with closer spacing for better light distribution and lower operating temperatures for longer life. The hinged top gives access for easy installation with captured mounting screws and quick wire connectors.
