DESIGN CORNER

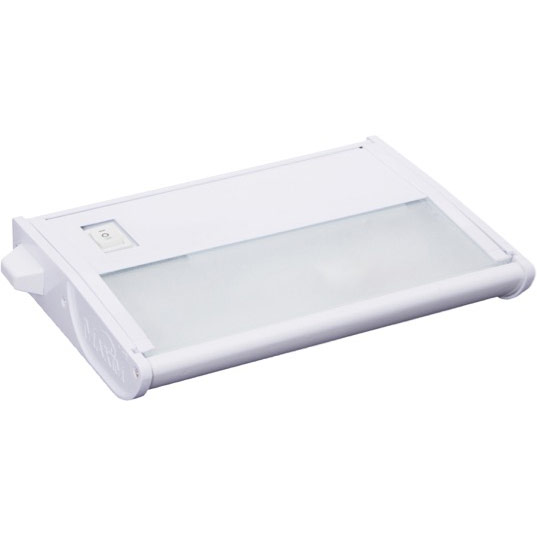

CounterMax MX-X120c 7" 1-Light 120V Xenon

87840WT

Collection: CounterMax MX-X120c Click for Addtional Information on the Cubic Collection
Type: Under Cabinet

Material: Aluminum

Finish: White
WT
Finish Options
  • White

LAMPING


Number of Bulb: 1

Light Type: Xenon

Bulb Type: G8 Xenon
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 20

Fixture Max Wattage: 20

Rated Life: 3,500 Hours
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 225
A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 2900 K
This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Included

Dimmable: Standard

Input Voltage: 120

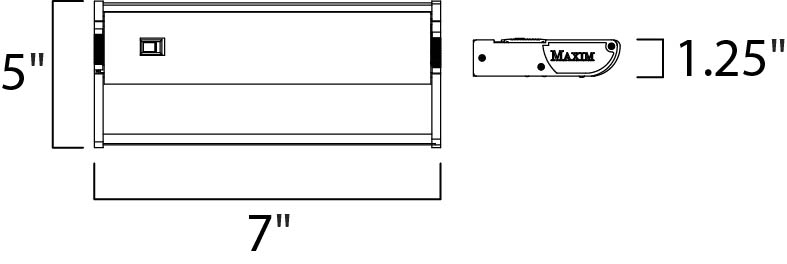

MEASURMENTS


Width: 5"

Height: 1.25"

Length: 7"

Hanging Weight: 1.1 lb.

UPS Shippable: Yes
Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

CERTIFICATIONS/ OTHER


Safety Rating: Dry

Energy Star: No
Click for Additional Information on ENERGY STAR



With a sleek profile, linkability and direct wiring, CounterMax MX-X120c Series installs easily under the cabinet and emits a warm light. The hinged top gives easy access to the long-lasting Xenon bulbs and wiring. Cabinets stay cool and safe due to the unique airflow design that limits heat transfer.
