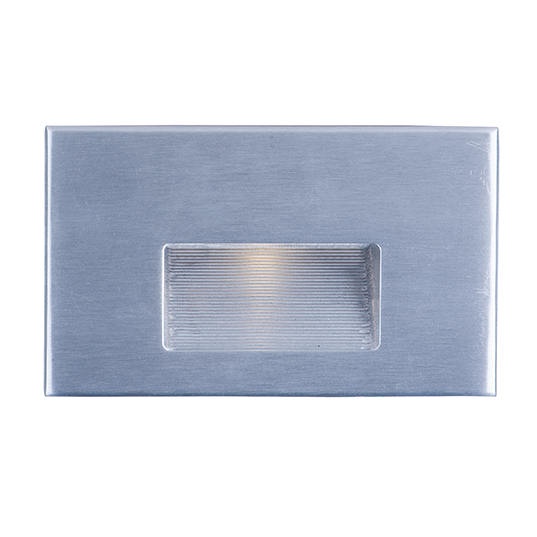

Path LED Step Light

58000AL


Step and pathway lighting suitable for interior or exterior application. Designed to install into a single gang box and is line voltage so additional transformers are not needed. Available in Aluminum, White, Black, or Bronze and both horizontal wide beam or vertical narrow beam spread.
Collection: Path Click for Addtional Information on the Cubic Collection
Type: Outdoor Pathway Light

Material: Aluminum

Finish: Brushed Aluminum
AL
Finish Options
  • Brushed Aluminum
  • Black
  • Bronze
  • White

LAMPING


Number of Bulb: 1

Light Type: LED

Bulb Type: PCB Integrated
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 4

Total Wattage: 4

Lighting Direction: Down

Install Up/Down: Up

Rated Life: 50,000 Hours
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 280
A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Delivered Lumens: 112
A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K
This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated

CRI: 80+

Dimmable: No

Input Voltage: 120

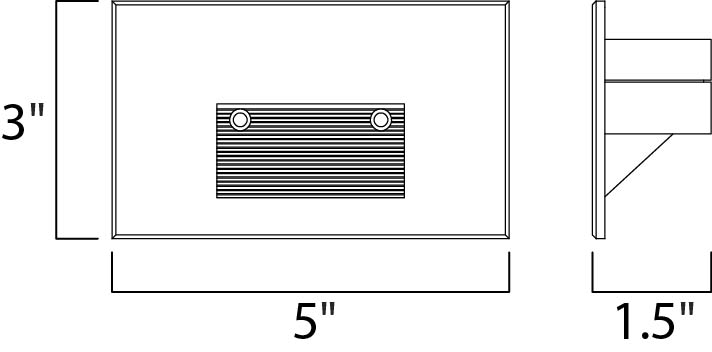

MEASUREMENTS


Width: 5"

Height: 3"

Extension: 1.5"

HCO: 1.5"

BP Width: 3"

BP Height: 5"

Wire Length: 6"

Hanging Weight: 0.77 lb.

Adjustable: No

UPS Shippable: Yes
Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

CERTIFICATIONS/ OTHER


Safety Rating: Wet

Title 24: For Outdoor
Click for Additional Information on Title 24
Finish: Brushed Aluminum

Material: Aluminum

MAIN



Step and pathway lighting suitable for interior or exterior application. Designed to install into a single gang box and is line voltage so additional transformers are not needed. Available in Aluminum, White, Black, or Bronze and both horizontal wide beam or vertical narrow beam spread.
