Home > Indoor Bath Vanity Lighting > Tubi 30" 5CCT LED Bath Bar
52513WTNAB

Tubi

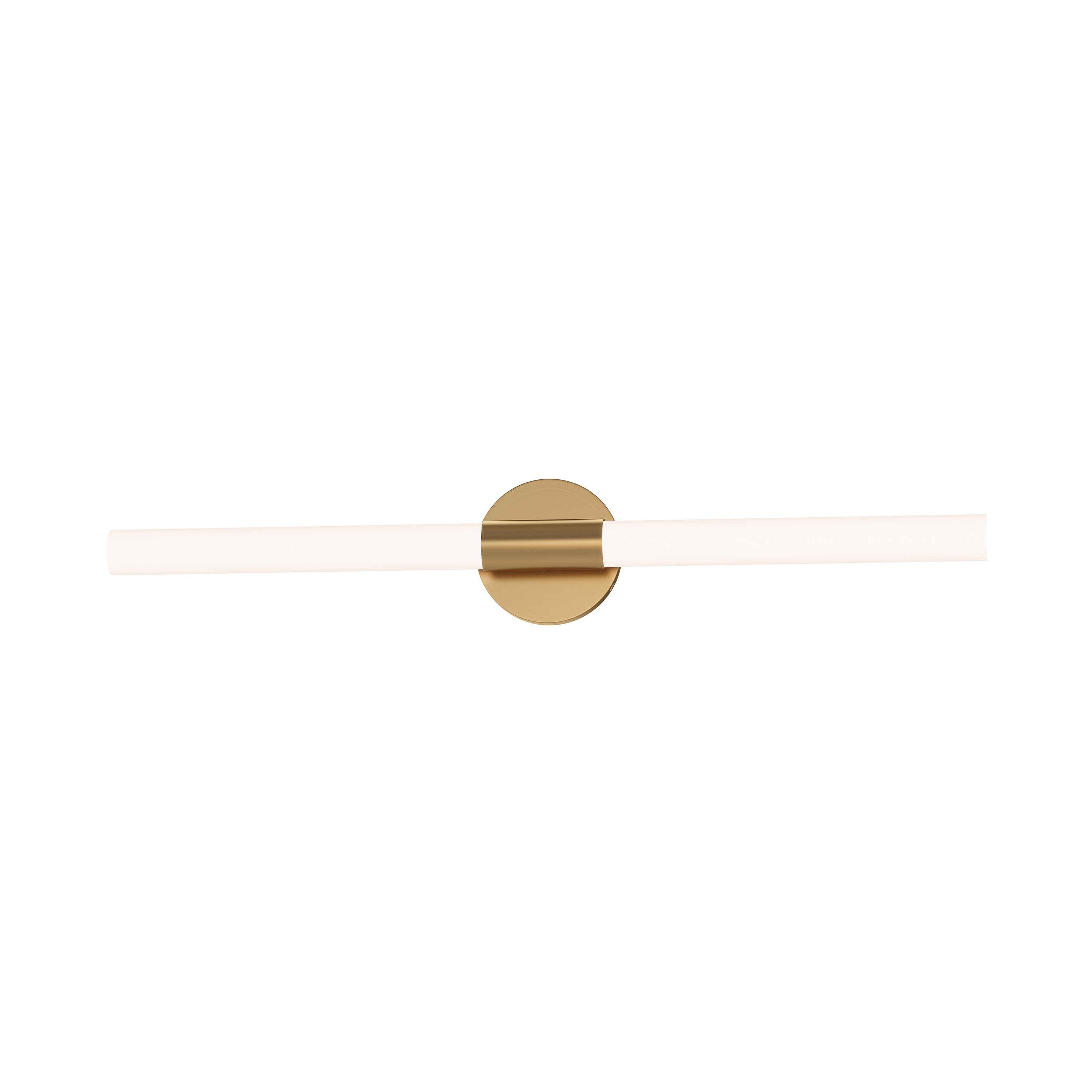

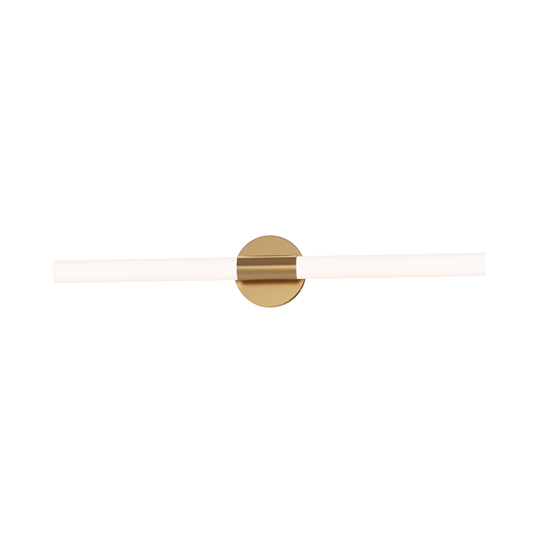

Tubi 30" 5CCT LED Bath Bar

52513WTNAB
$118.00


An ultra-slim tube of light extends in both directions, giving this LED wall sconce a crisp, refined profile. Offered in multiple lengths and finishes, Tubi mounts to a single-gang box or standard junction box with the included five-inch cover plate. An accessible switch on the frame lets you choose from five color temperatures. Streamlined and flexible, Tubi delivers precise, contemporary illumination with ease.
Collection: Tubi Click for Addtional Information on the Cubic Collection
Type: Bath Vanity
Material: PC, Steel
Finish: Natural Aged Brass NAB
Finish


pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 27
Total Wattage: 27
Lighting Direction: Omni
Install Up/Down: Vertical / Hori
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 2000 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 27-30-35-40-50 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac or ELV
Input Voltage: 120
MEASUREMENTS

Width: 30"
Height: 2.75"
Extension: 1.75"
Wire Length: 6"
Hanging Weight: 1.64 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 1.75"
Canopy Height: 1.75"
Canopy Length: 30"
CERTIFICATIONS/ OTHER

Safety Rating: Damp
CA Title 24 Click for Additional Information on Title 24
Finish: Natural Aged Brass
Material: PC, Steel

MAIN



An ultra-slim tube of light extends in both directions, giving this LED wall sconce a crisp, refined profile. Offered in multiple lengths and finishes, Tubi mounts to a single-gang box or standard junction box with the included five-inch cover plate. An accessible switch on the frame lets you choose from five color temperatures. Streamlined and flexible, Tubi delivers precise, contemporary illumination with ease.

Lighting Tips: Bath Vanity
