Home > Indoor Wall Lighting Lanterns > Ledge LED Outdoor Wall Sconce
86198ABZ

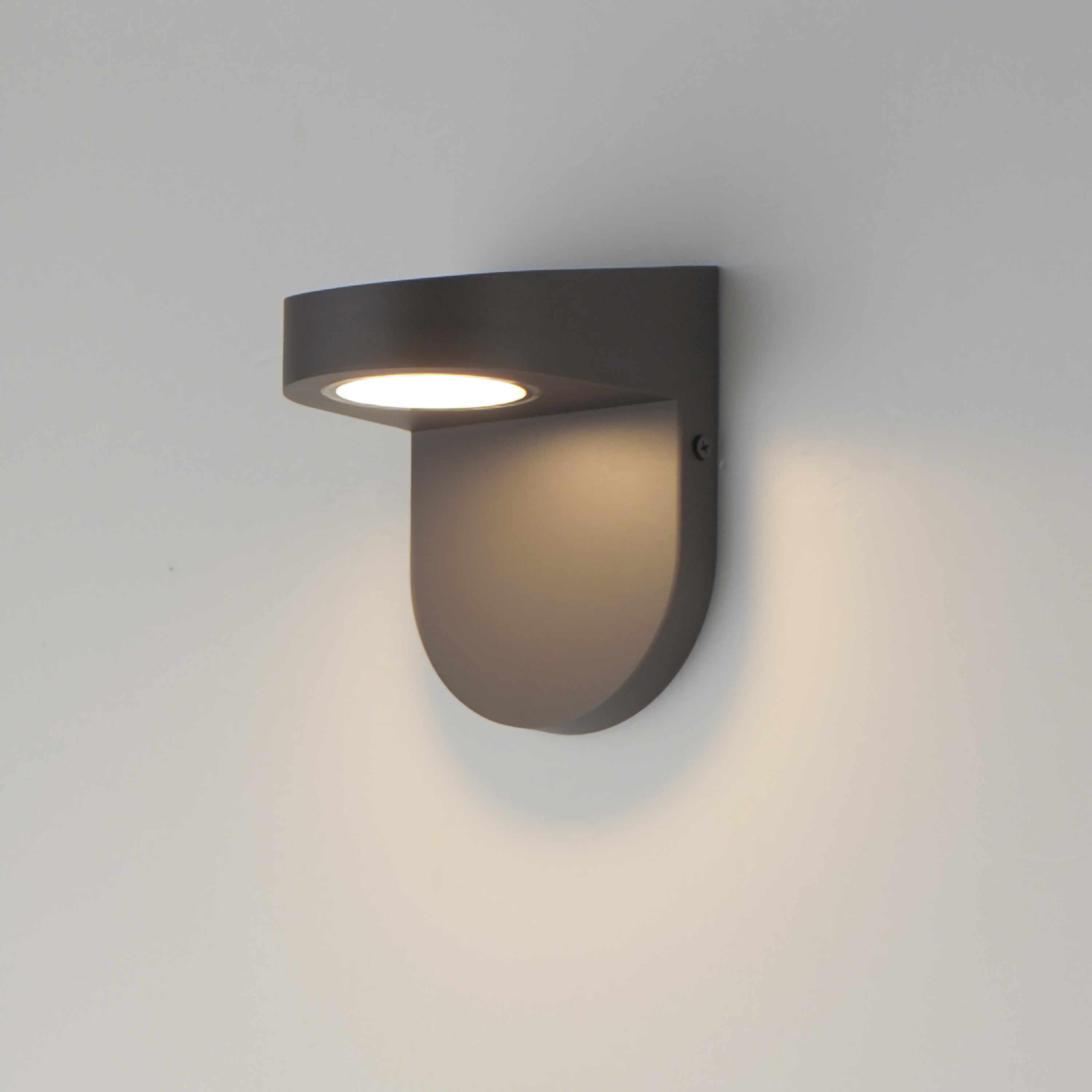

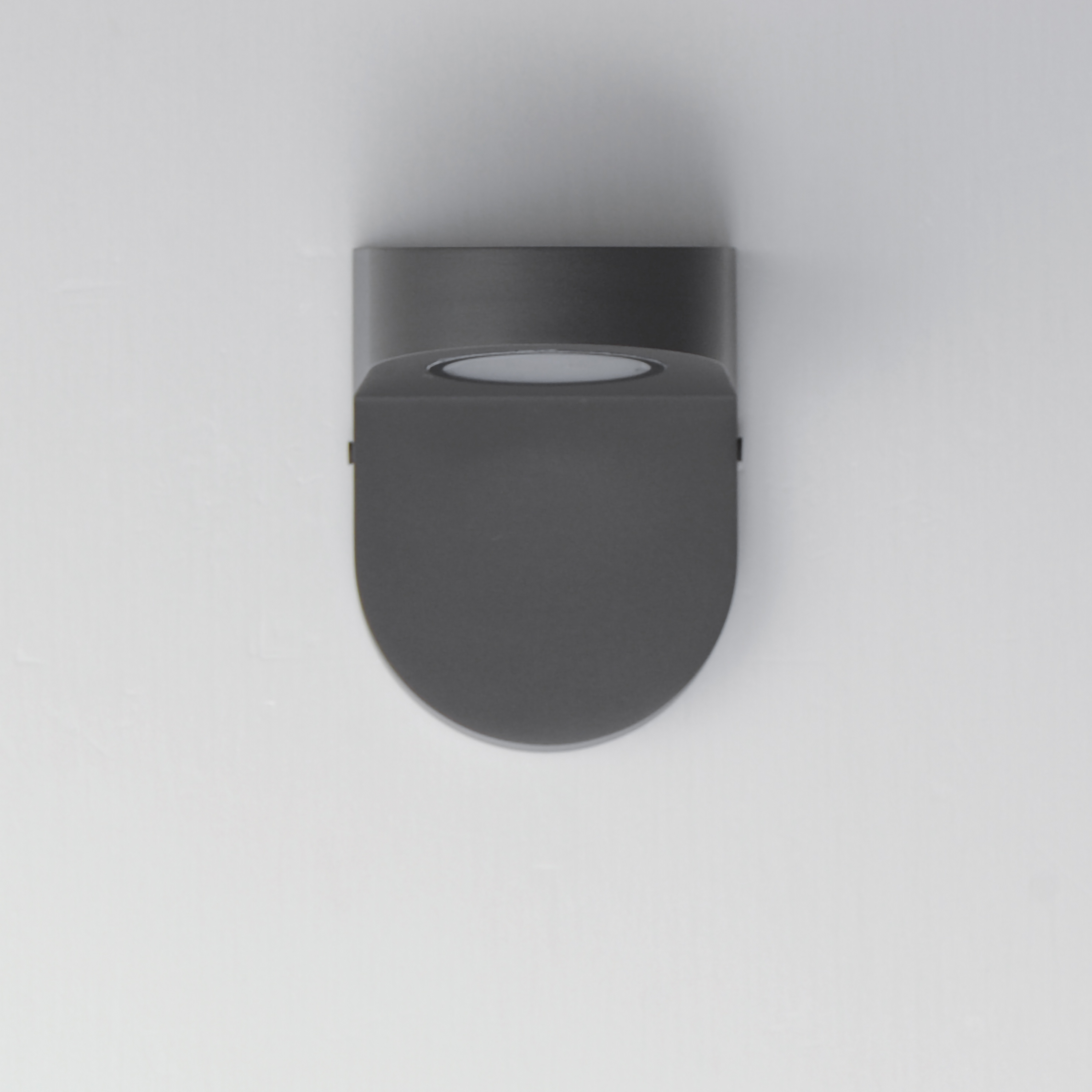

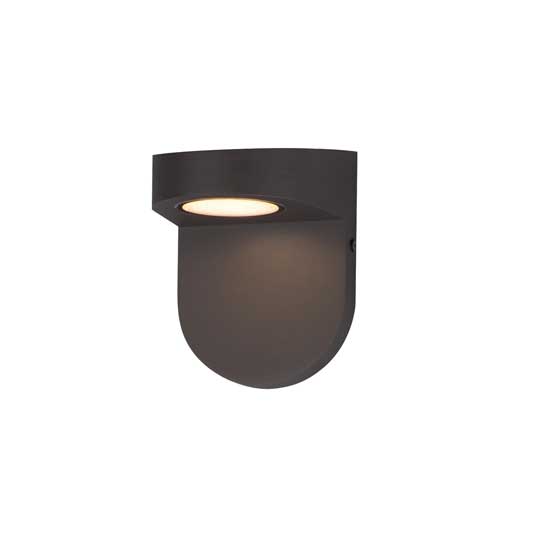

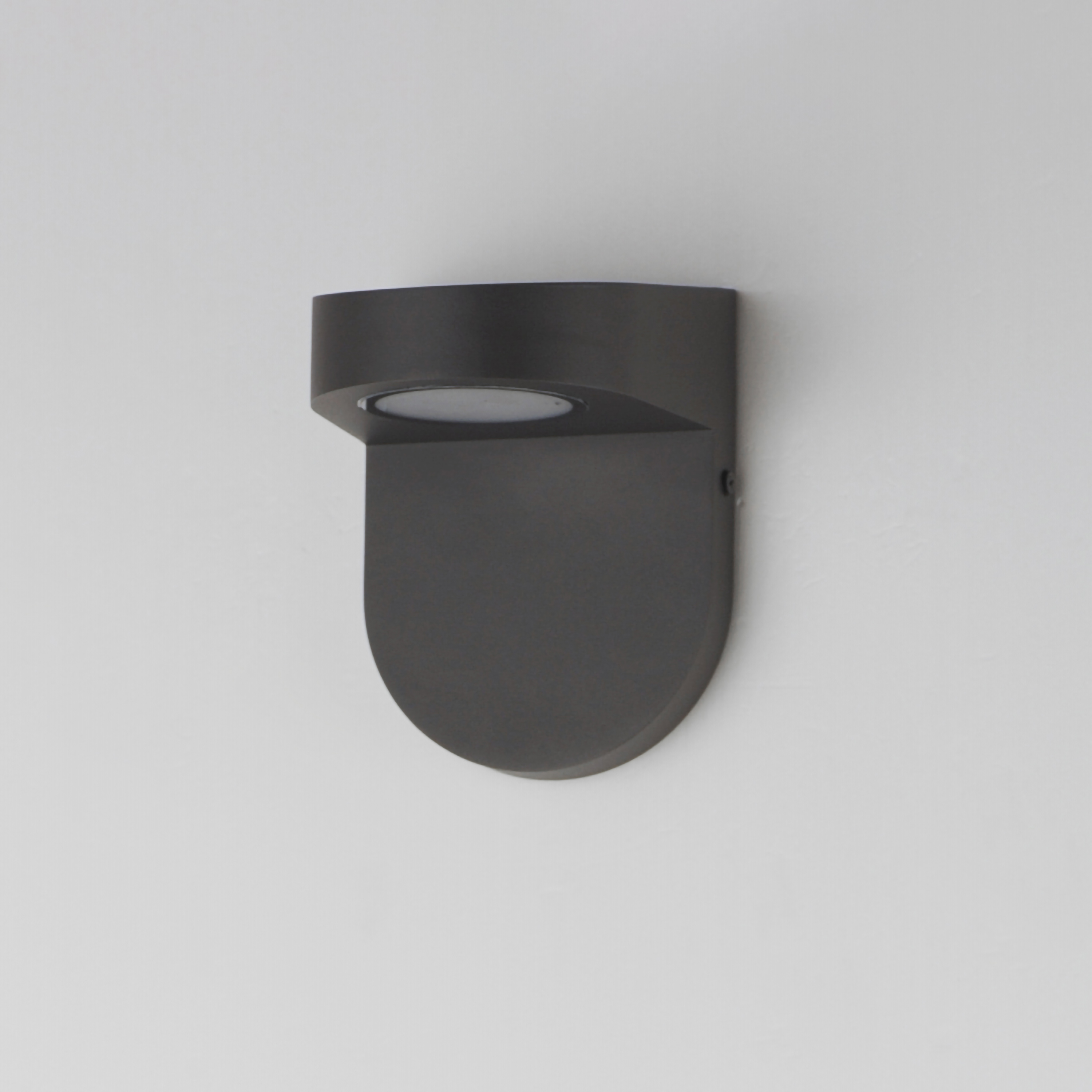

Ledge LED Outdoor Wall Sconce
Ledge LED Outdoor Wall Sconce
Ledge LED Outdoor Wall Sconce
Ledge LED Outdoor Wall Sconce

Ledge

Ledge LED Outdoor Wall Sconce

86198ABZ
$98.00


Simple in design, this architectural outdoor sconce is designed with an extension at the top to cast light directly downward where needed. The LED light source is concealed within the top of the frame making this a great choice for Dark Sky applications. There is an option to purchase the black model with photocell included for convenient automated light control. In addition to the Black finish, the sconces are available in Architectural Bronze and White.
Collection: Ledge Click for Addtional Information on the Cubic Collection
Type: Wall Sconce
Material: Aluminum, Glass
Finish: Architectural Bronze ABZ
Finish

pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: DC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 15
Total Wattage: 15
Lighting Direction: Down
Install Up/Down: Down
Rated Life: 25,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 1000 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac / ELV
Input Voltage: 120-277
MEASUREMENTS

Width: 4.25"
Height: 6.25"
Extension: 5.25"
HCO: 2.5"
BP Width: 4.75"
BP Height: 6.25"
Wire Length: 8"
Hanging Weight: 1.08 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Wet
Dark Sky: Yes
Finish: Architectural Bronze
Material: Aluminum, Glass

MAIN



Simple in design, this architectural outdoor sconce is designed with an extension at the top to cast light directly downward where needed. The LED light source is concealed within the top of the frame making this a great choice for Dark Sky applications. There is an option to purchase the black model with photocell included for convenient automated light control. In addition to the Black finish, the sconces are available in Architectural Bronze and White.
