Home > Pendants > Rapture 7-Light Pendant
22296WTSN

Rapture

Rapture 7-Light Pendant

22296WTSN
$598.00



Discontinued Optional LED BL4G9CL120V30
The Rapture Collection's delicate pattern in Satin Nickel stainless steel creates a silhouette against the inner fabric shade available in your choice of White, Black or Red. The shimmer of crystal adds a touch of elegance to this transitional style.
Collection: Rapture Click for Addtional Information on the Cubic Collection
Type: Linear Pendant
Material: Stainless Steel, Fabric, Crystal
Finish: Satin Nickel SN
Accessories
STR04506SN-LX
6" Extension Stem
STR04512SN-LX
12" Extension Stem
Bulb
BUX-40W-G9-CL-120V
DO NOT USE, USE BX40G9CL120V
Parts / Component
CRS22290B
Crystal Strand for 22291,4,5,692293, 7.8"L
CRS22290D
Crystal Strand for 22291,4,5,6,7,92293, 10.9"L
CRS22290M
Crystal Strand for 22291,4,5,6,7, 10"L
CRS22290R
Crystal Strand for 22294,4,5,6 7"L
CRY142
Crystal Pack for 22296
SHD296SN
Rapture Stainless Steel Shade, 22296, SN
SHD296WT
Rapture Fabric Shade, 22296, WT


pdf Specification Sheet
LAMPING

Number of Bulb: 7
Light Type: Xenon
Bulb Type: G9 An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 40
Total Wattage: 280
Rated Life: 2,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 5250 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 2900 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Included
Dimmable: Yes
Input Voltage: 120

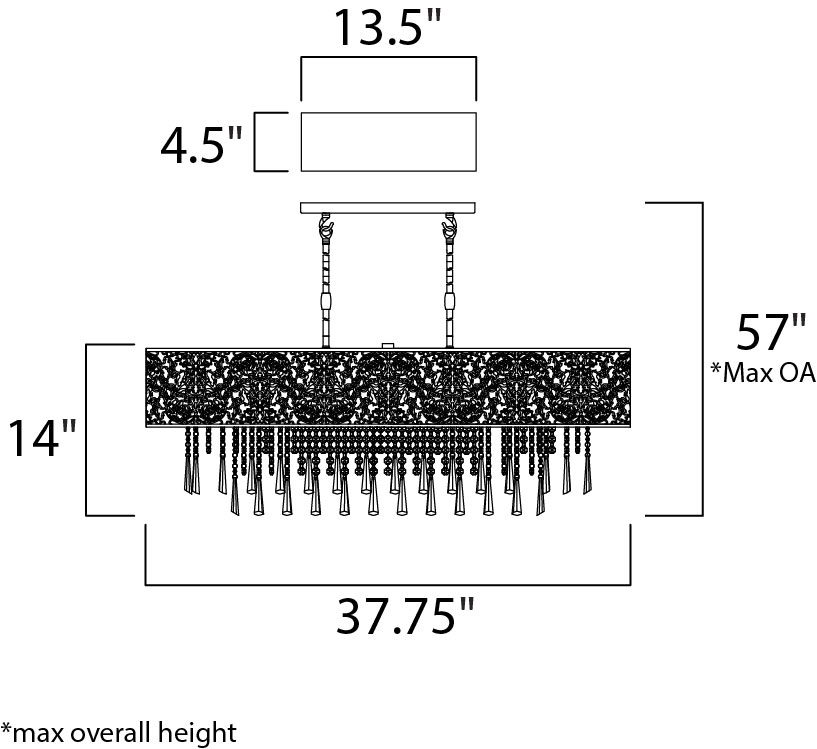

MEASUREMENTS

Width: 8.25"
Height: 14"
Length: 37.75"
Max Overall Height: 57"
Wire Length: 120"
Hanging Weight: 16.32 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 4.53"
Canopy Height: 0.35"
Canopy Length: 13.58"
CERTIFICATIONS/ OTHER

Safety Rating: Dry
Slope: 120
Finish: Satin Nickel
Material: Stainless Steel, Fabric, Crystal



The Rapture Collection's delicate pattern in Satin Nickel stainless steel creates a silhouette against the inner fabric shade available in your choice of White, Black or Red. The shimmer of crystal adds a touch of elegance to this transitional style.

Lighting Tips: Linear Pendant
