DESIGN CORNER

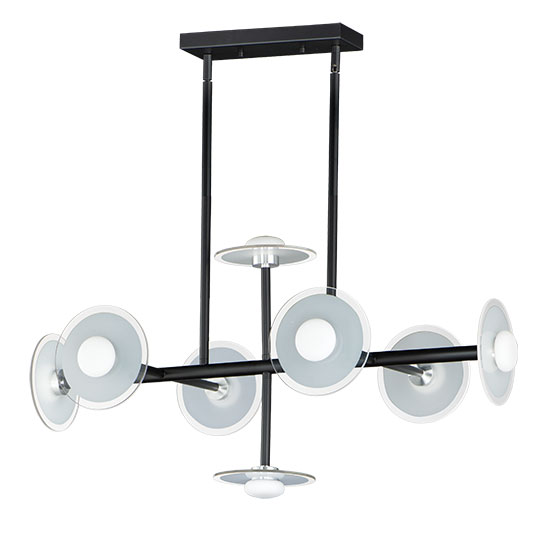

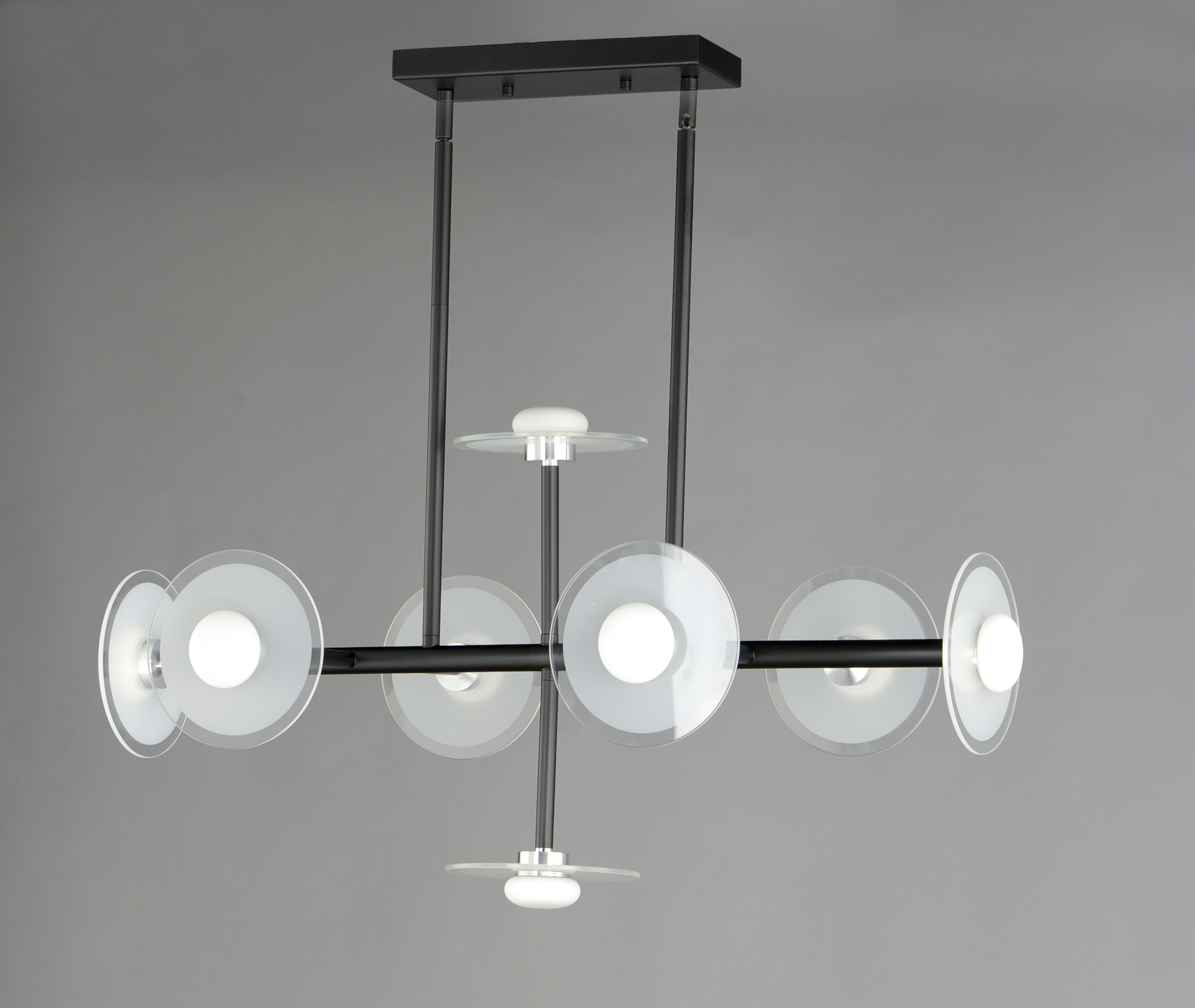

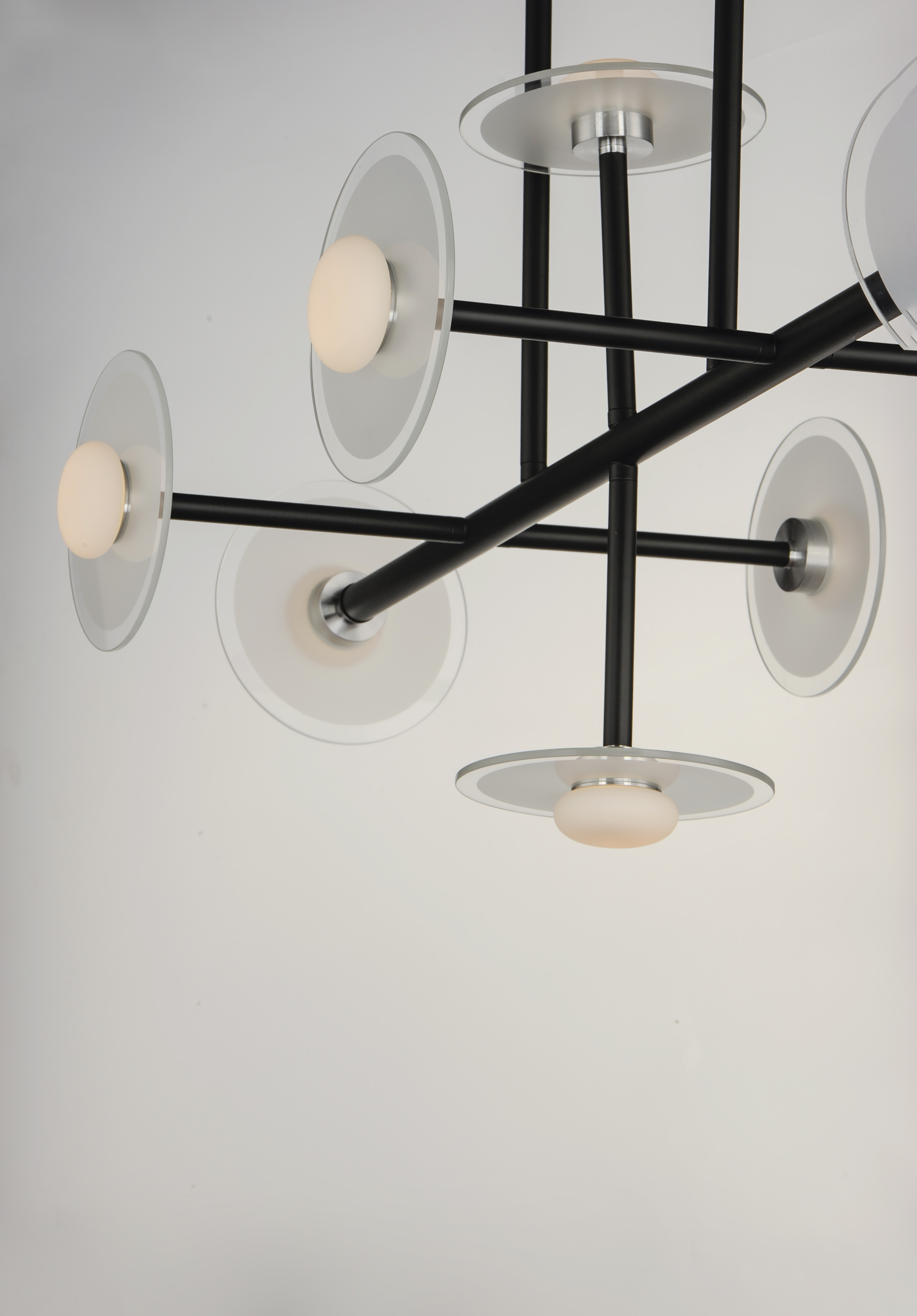

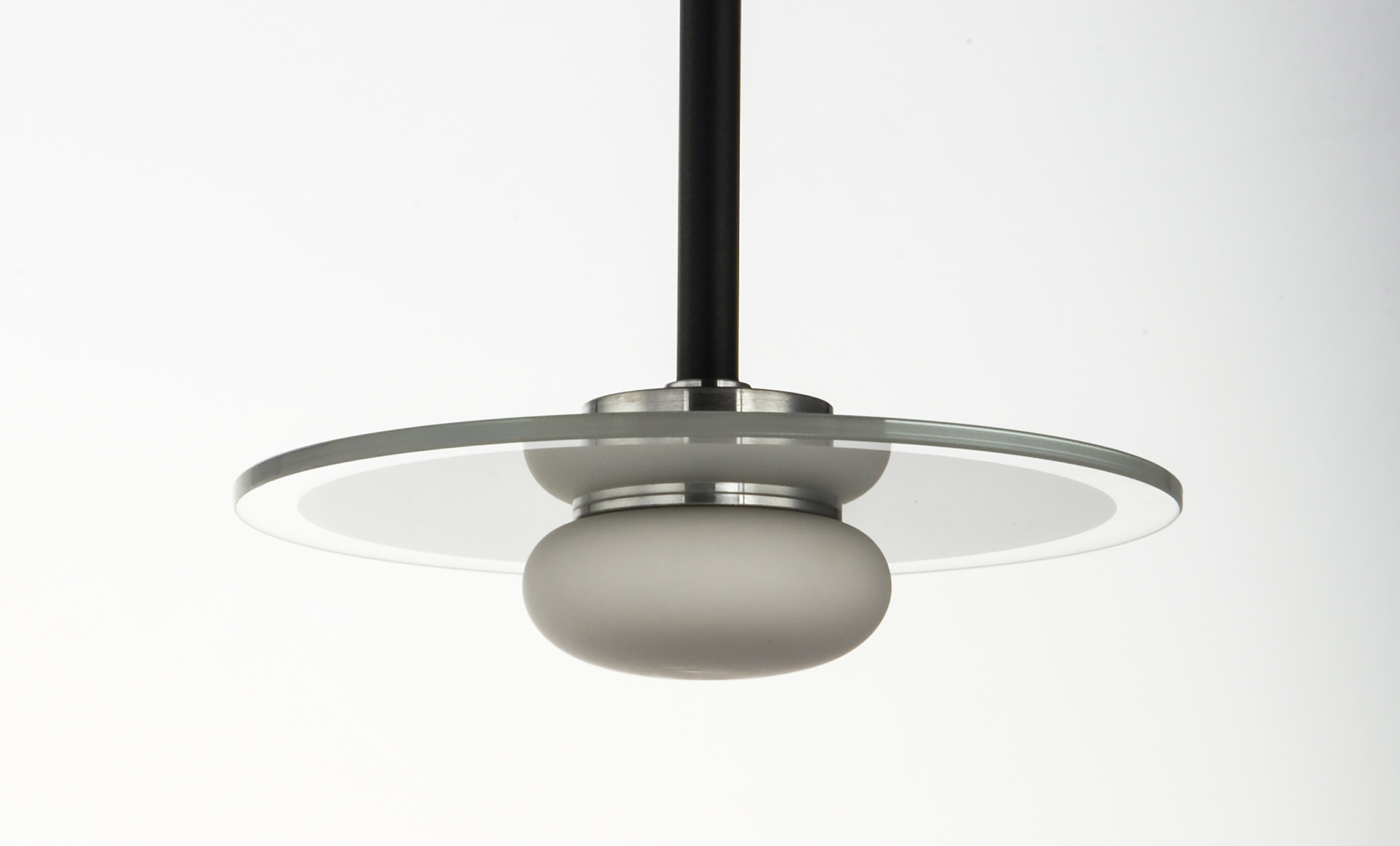

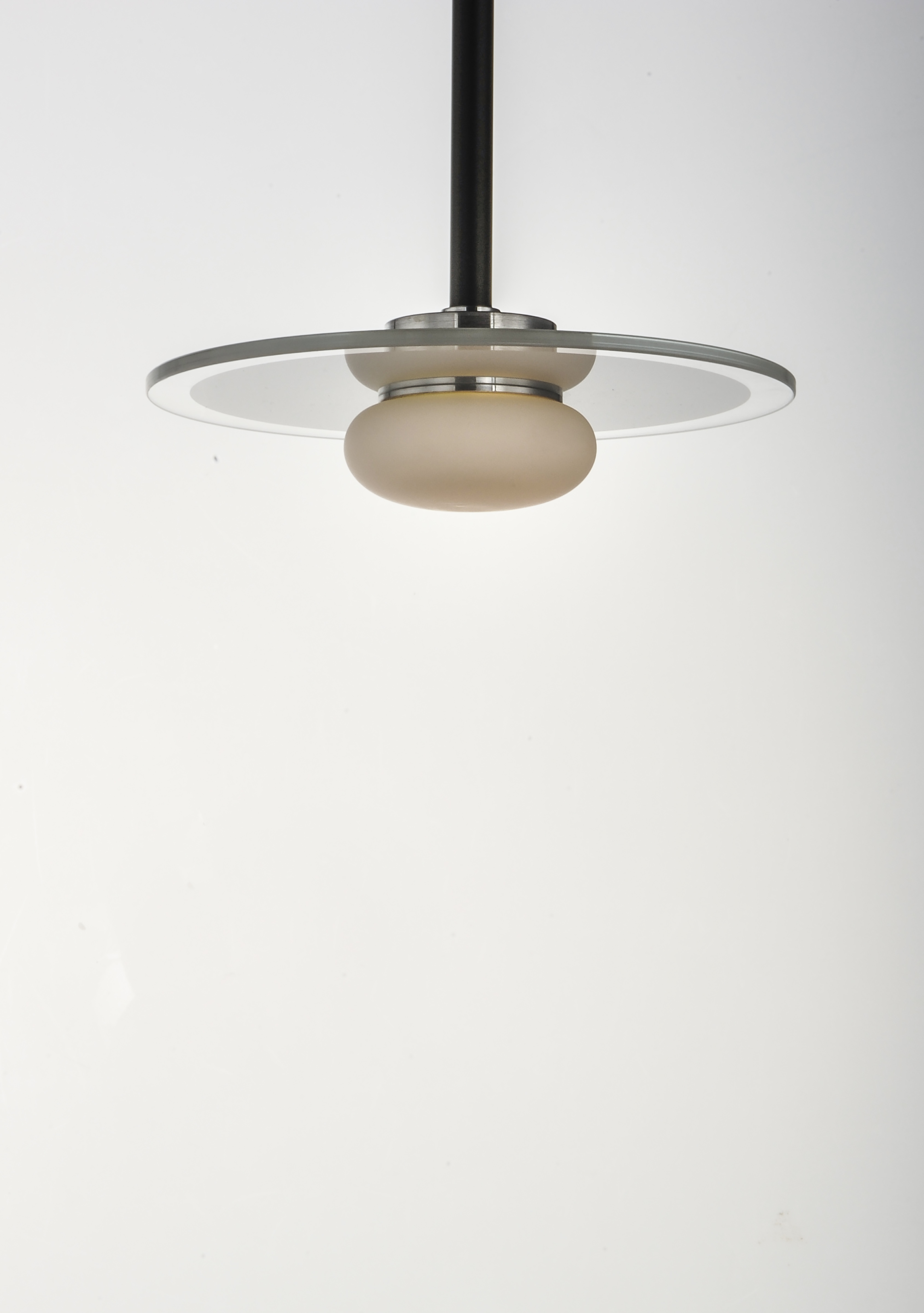

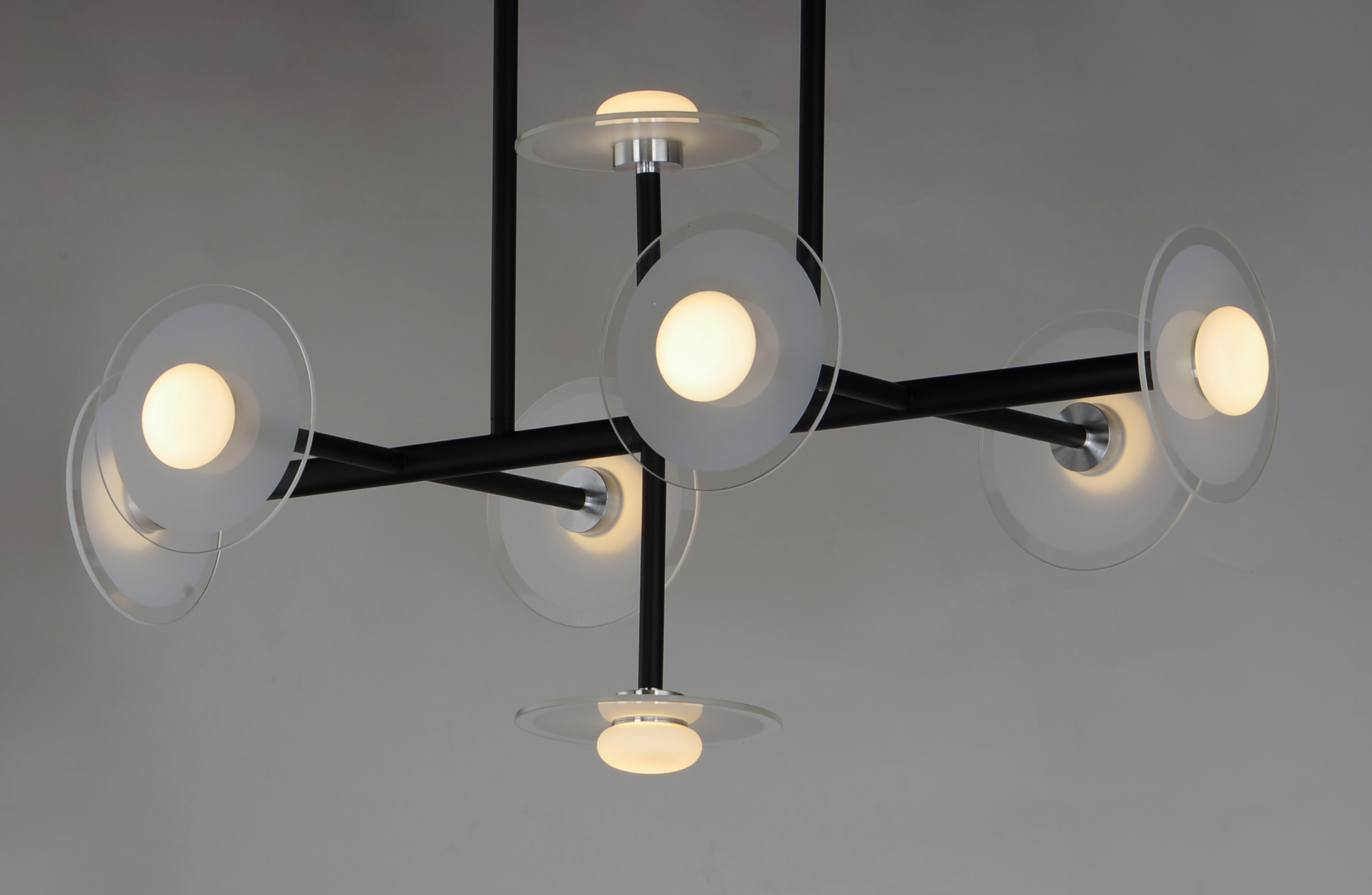

Helio 8-Light LED Pendant

24768FTSWBK


Simplistic frames of Black terminate at machined fittings that support round Frost glass discs with a clear reveal on the outside edge. Satin White glass diffusers conceal LED boards which provide ample light with excellent color rendition.
Collection: Helio Click for Addtional Information on the Cubic Collection
Type: Suspension Pendant

Material: Steel & Glass

Glass: Frosted / Satin White

Finish: Black
BK
Finish Options
  • Black

LAMPING


Number of Bulb: 8

Light Type: LED

Bulb Type: PCB Integrated
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 4

Total Wattage: 32

Rated Life: 35,000 Hours
An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 3040
A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Delivered Lumens: 2370
A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K
This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated

Photo Cell: N

CRI: 90

Dimmable: Triac CL or ELV

Input Voltage: 120

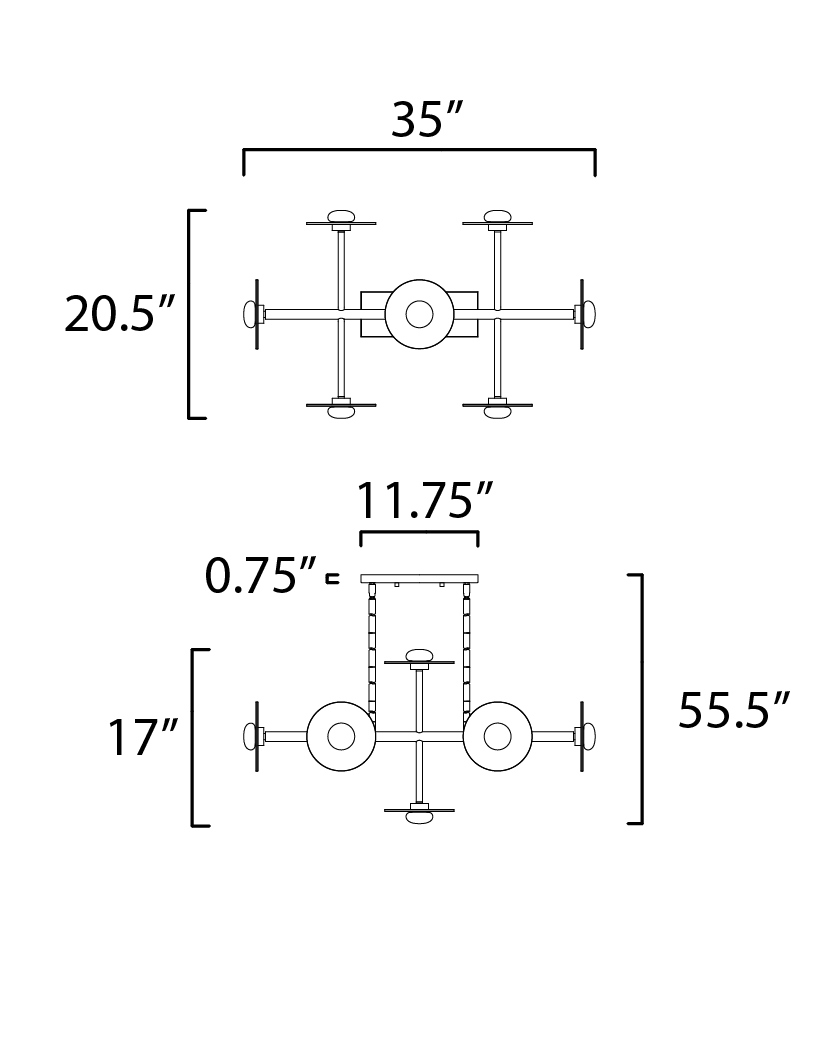

MEASUREMENTS


Width: 35"

Height: 17.5"

Length: 20.5"

Extension: 21"

Max Overall Height: 55.75"

Min Overall Height: 17"

Wire Length: 120"

Hanging Weight: 13.36 lb.

Adjustable: Yes

UPS Shippable: Yes
Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 4.5"
Canopy Height: 1.5"
Canopy Length: 11.75"

CERTIFICATIONS/ OTHER


Safety Rating: Dry

Slope: 90

Finish: Black

Material: Steel & Glass

MAIN



Simplistic frames of Black terminate at machined fittings that support round Frost glass discs with a clear reveal on the outside edge. Satin White glass diffusers conceal LED boards which provide ample light with excellent color rendition.
