Home > Utility Items > LED Wrap 5CCT 4.75"x48" Flush Mount 5CCT
57544WT

LED Wrap

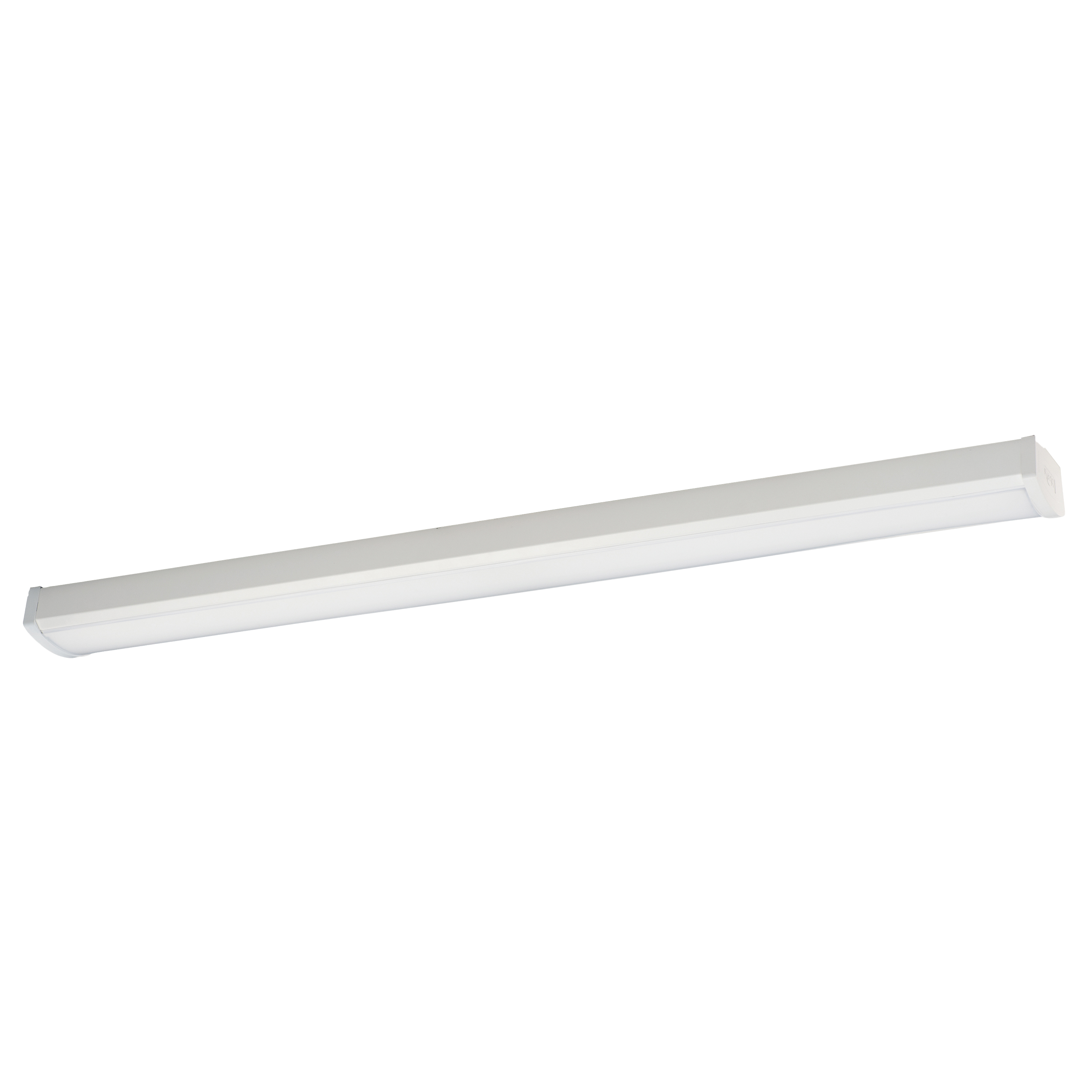

LED Wrap 5CCT 4.75"x48" Flush Mount 5CCT

57544WT
$90.00


This modern era utility fixture has the perfect combination of economical operation and low maintenance. No longer do you have to change fluorescent tubes as this new design features dual full length LED boards for ample light and even distribution.
Collection: LED Wrap Click for Addtional Information on the Cubic Collection
Type: Utility Items
Material: Steel, PC
Finish: White WT
Finish


pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: DC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 40
Total Wattage: 40
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 3650 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 27-30-35-40-50 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac
Input Voltage: 120-277
MEASUREMENTS

Width: 5.25"
Height: 2.5"
Length: 48"
HCO: 5.36"
BP Width: 48"
BP Height: 2.5"
Hanging Weight: 1.76 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Damp
CA Title 24 Click for Additional Information on Title 24
Finish: White
Material: Steel, PC

MAIN



This modern era utility fixture has the perfect combination of economical operation and low maintenance. No longer do you have to change fluorescent tubes as this new design features dual full length LED boards for ample light and even distribution.

Lighting Tips: Utility Items
