Home > Utility Items > Vaportight 96" Flush Mount
not

Vaportight

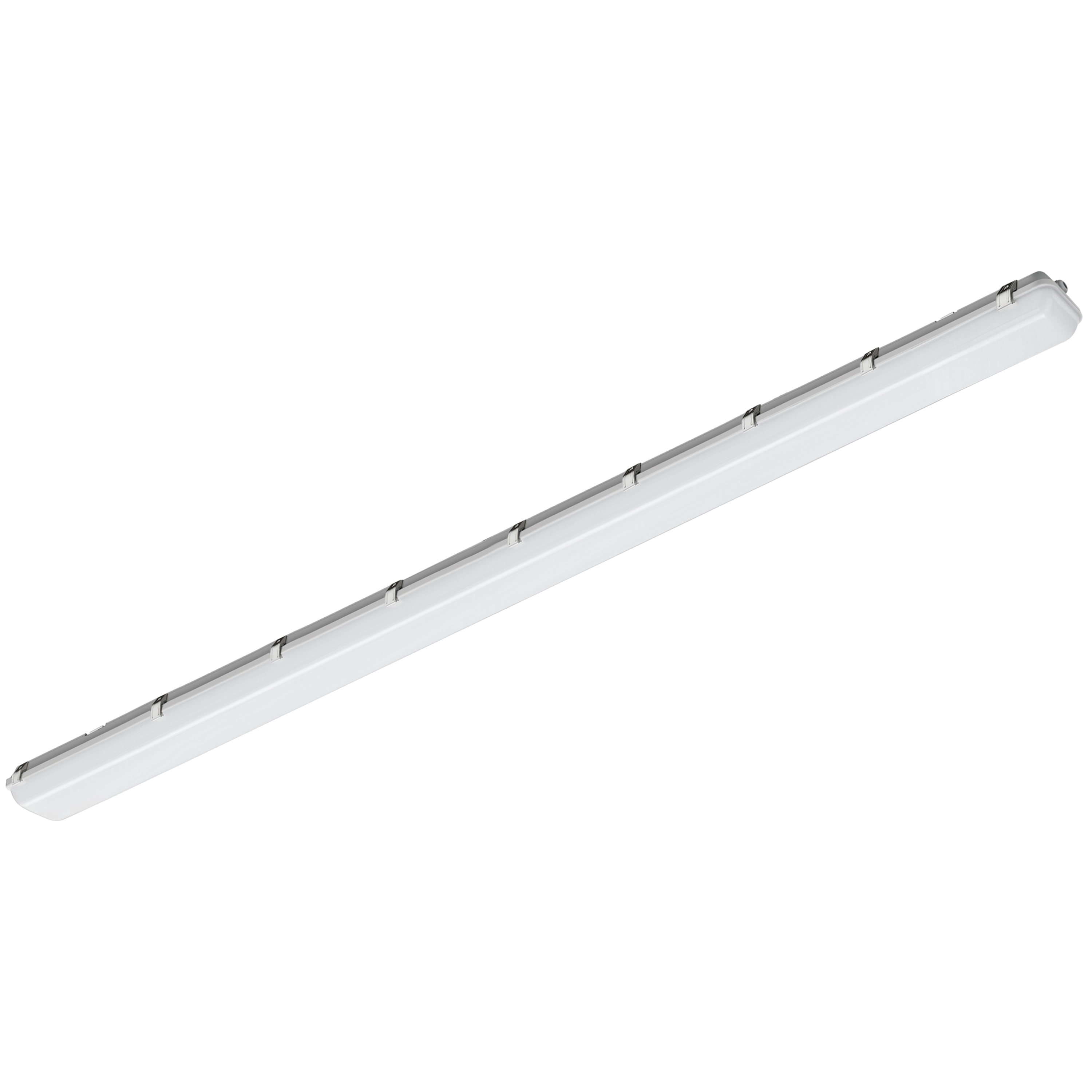

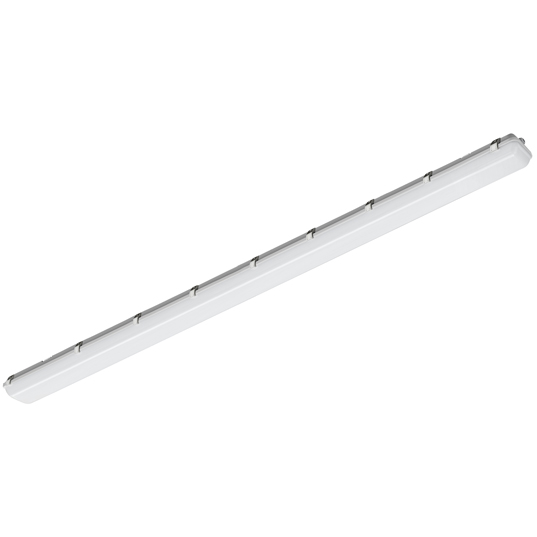

Vaportight 96" Flush Mount

57538WTDG
$348.00


The Vapor Tight light fixture is constructed for any environment. With an integrated 4CCT Select switch, toggle between 3000-5000k. Not just CCT Selectable, this model features a wattage selectable switch allowing you to control the brightness of a space and its electrical usage. Ideal for commercial and industrial applications such as garage facilities and stairwells, this product is both vandal proof and constructed for installation in harsher climates.
Collection: Vaportight Click for Addtional Information on the Cubic Collection
Type: Utility Items
Material: Steel, PC
Finish: White WT
Finish


pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: DC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 60/40/100
Total Wattage: 100
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Color Temperature: 30-35-40-50 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: 0-10V
Input Voltage: 120-277

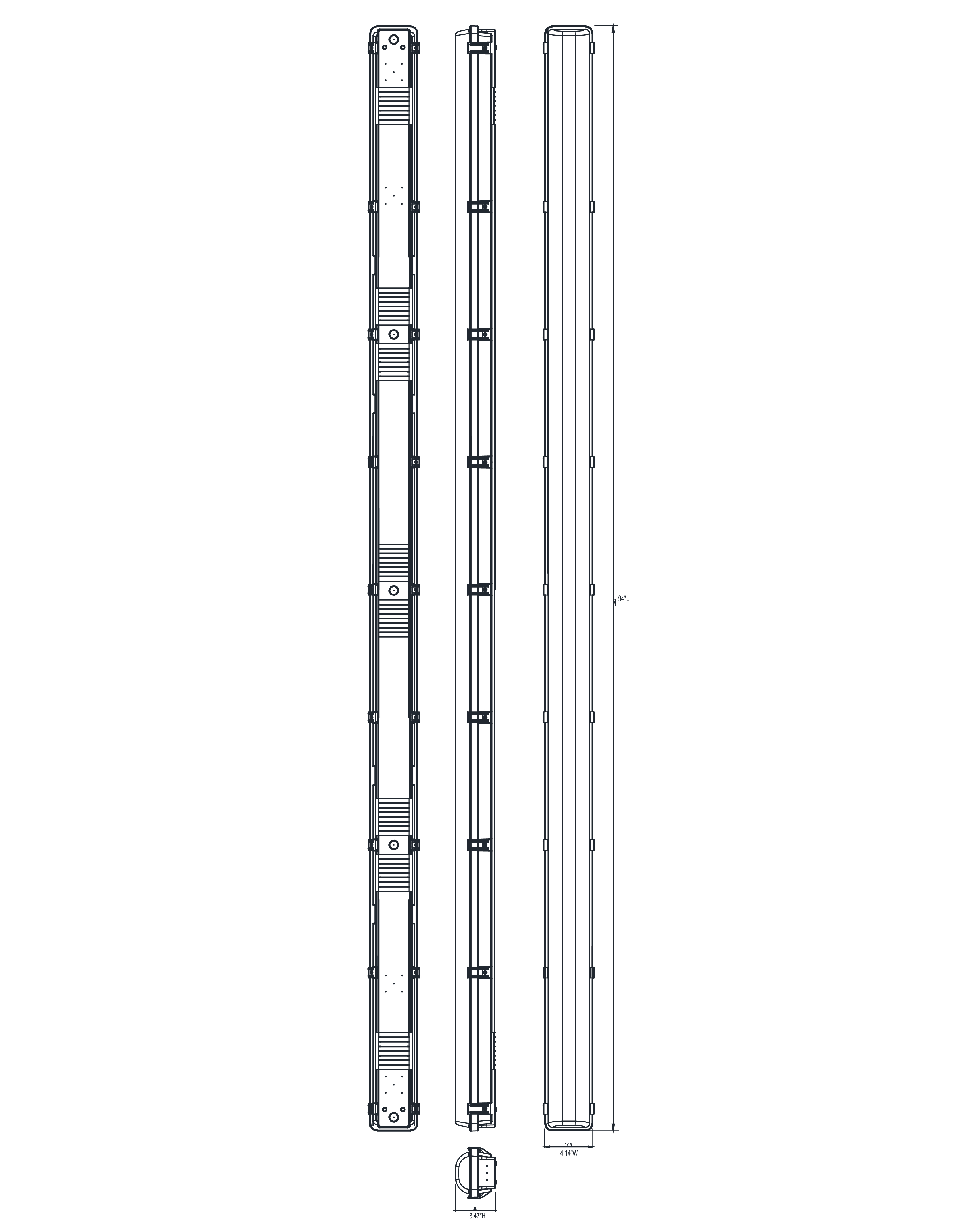

MEASUREMENTS

Width: 4"
Height: 3.5"
Length: 94"
HCO: 4.14"
BP Width: 94"
BP Height: 1.5"
Hanging Weight: 6.46 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Wet
CA Title 24 Click for Additional Information on Title 24
Finish: White
Material: Steel, PC

MAIN



The Vapor Tight light fixture is constructed for any environment. With an integrated 4CCT Select switch, toggle between 3000-5000k. Not just CCT Selectable, this model features a wattage selectable switch allowing you to control the brightness of a space and its electrical usage. Ideal for commercial and industrial applications such as garage facilities and stairwells, this product is both vandal proof and constructed for installation in harsher climates.

Lighting Tips: Utility Items
