Home > Outdoor Hanging Lantern > Civic LED Outdoor Pendant
54367FTABZ
Civic LED Outdoor Pendant

Civic

Civic LED Outdoor Pendant

54367FTABZ
$298.00



Discontinued

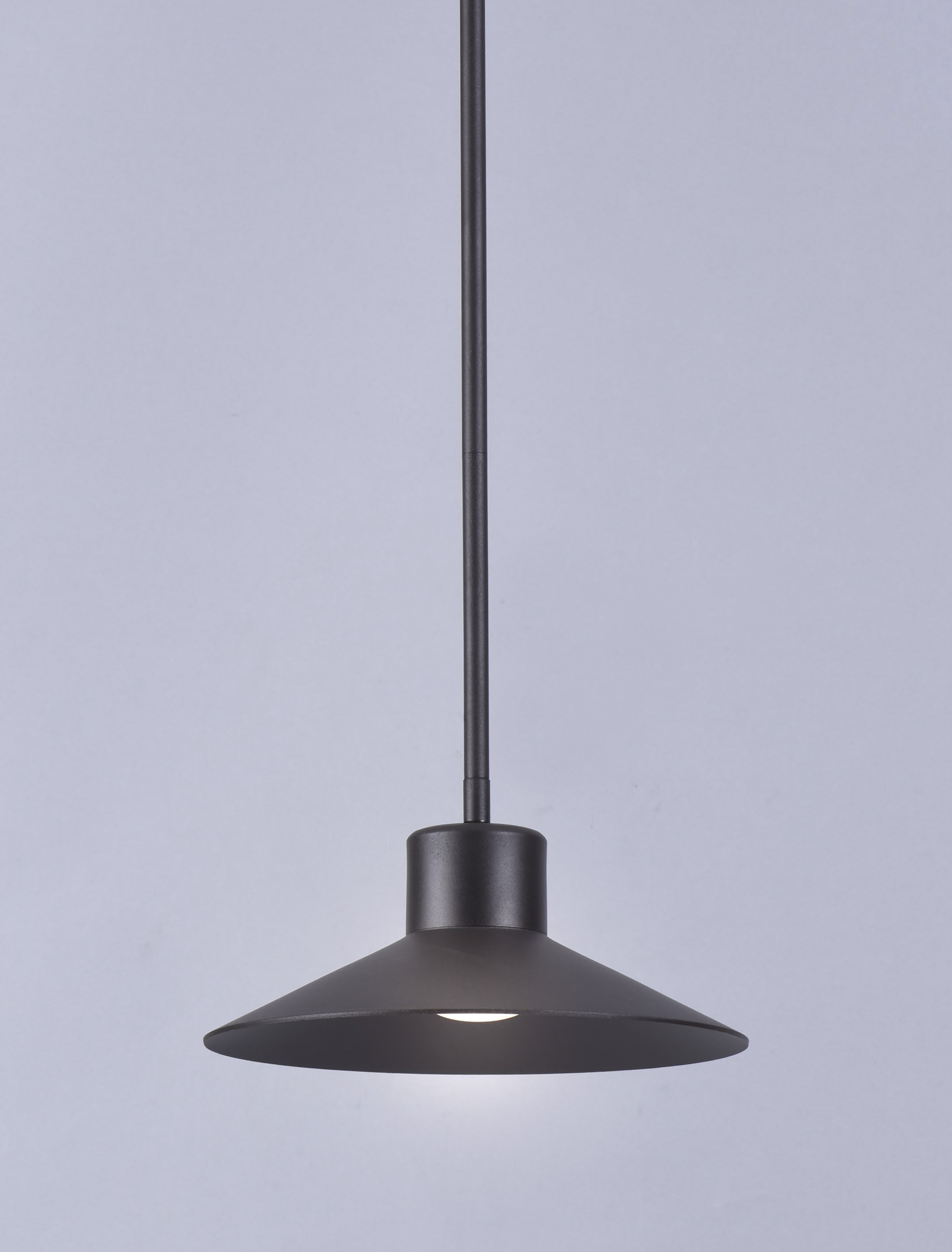

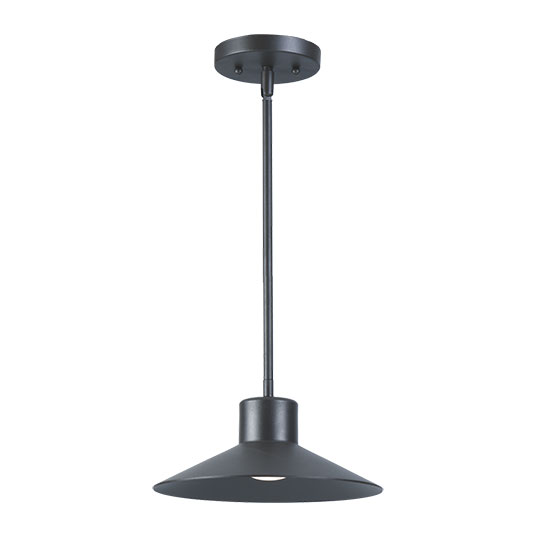

Conical shades finished in Architectural Bronze appear to be suspended by its stainless steel cable. Concealed inside these shades is a high powered COB LED which shines into a heavy Clear glass font. The bottom of theses fonts have an additional thickness of glass for better light distribution and lighting effect.
Collection: Civic Click for Addtional Information on the Cubic Collection
Type: Outdoor Pendant
Material: Steel, Glass
Finish: Architectural Bronze ABZ
Accessories
STR04506ABZ-DZ
6" Extension Stem
STR04512ABZ-DZ
12" Extension Stem
Parts / Component
DDM136-CC-24-36V-10.8W
A/C 120V, 24-36v,300mA LED-D36V-300
GLS54365FT
Glass for 54363,5,7, 2.5"W x 1.3"H, FT


pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 11
Total Wattage: 11
Rated Life: 40,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 900 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90+
Dimmable: YES
Input Voltage: 120

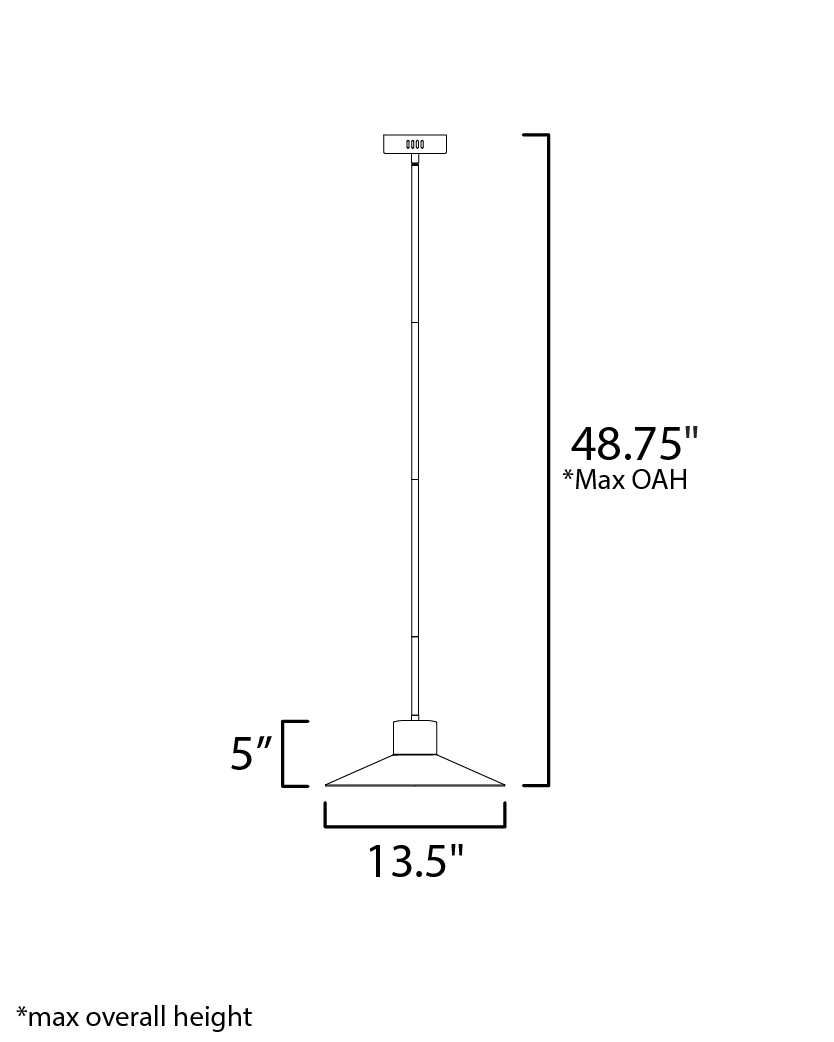

MEASUREMENTS

Width: 13.5"
Height: 3.5"
Length: 13.5"
Max Overall Height: 48.75"
Hanging Weight: 5.5 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Damp
Dark Sky: Yes
Title 24: For Outdoor Click for Additional Information on Title 24
Slope: 120
Finish: Architectural Bronze
Material: Steel, Glass

MAIN



Conical shades finished in Architectural Bronze appear to be suspended by its stainless steel cable. Concealed inside these shades is a high powered COB LED which shines into a heavy Clear glass font. The bottom of theses fonts have an additional thickness of glass for better light distribution and lighting effect.

Lighting Tips: Outdoor Pendant
