Home > Outdoor Wall Mount > Cliffsdege VX Small LED Outdoor Mini Wall Sconce
42132BK

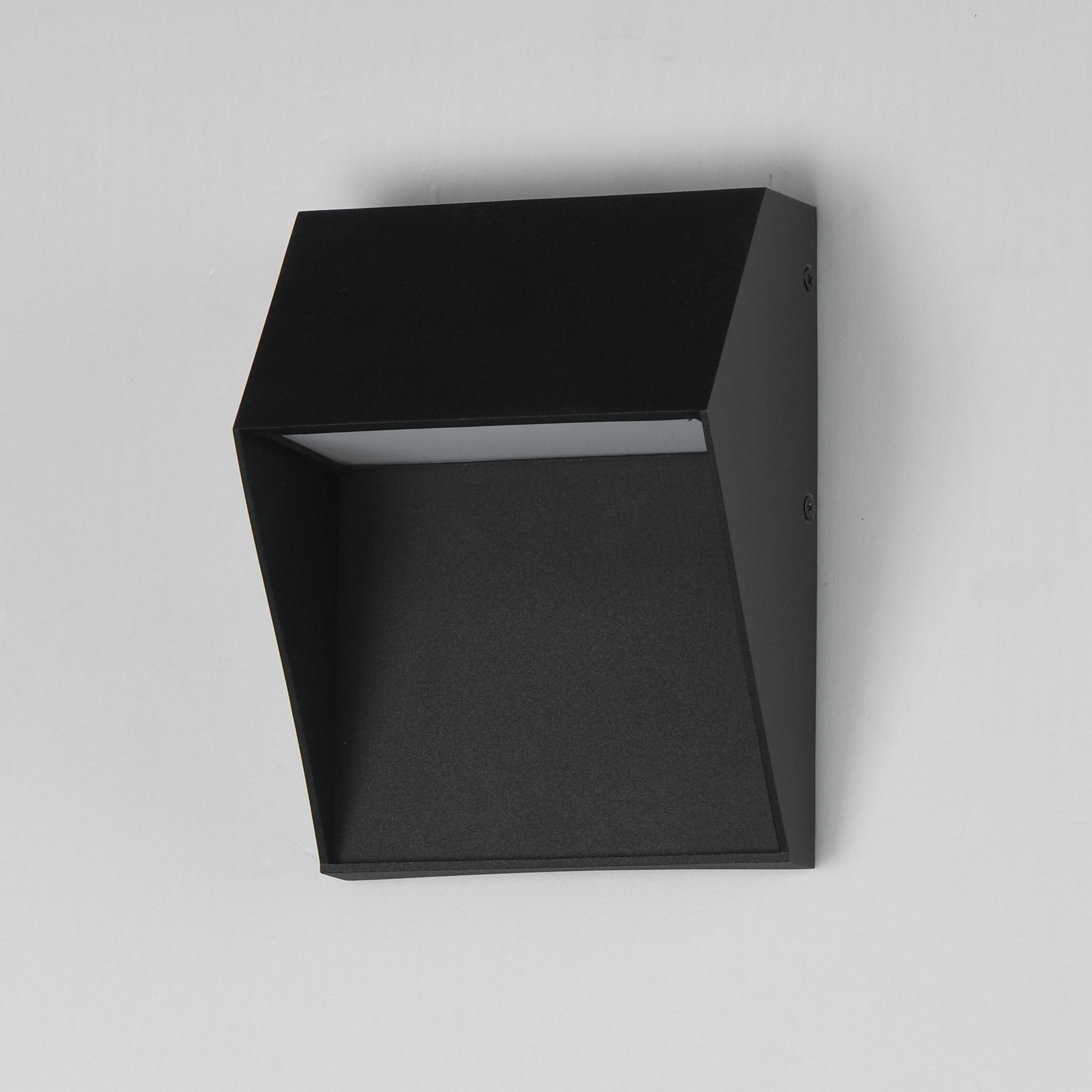

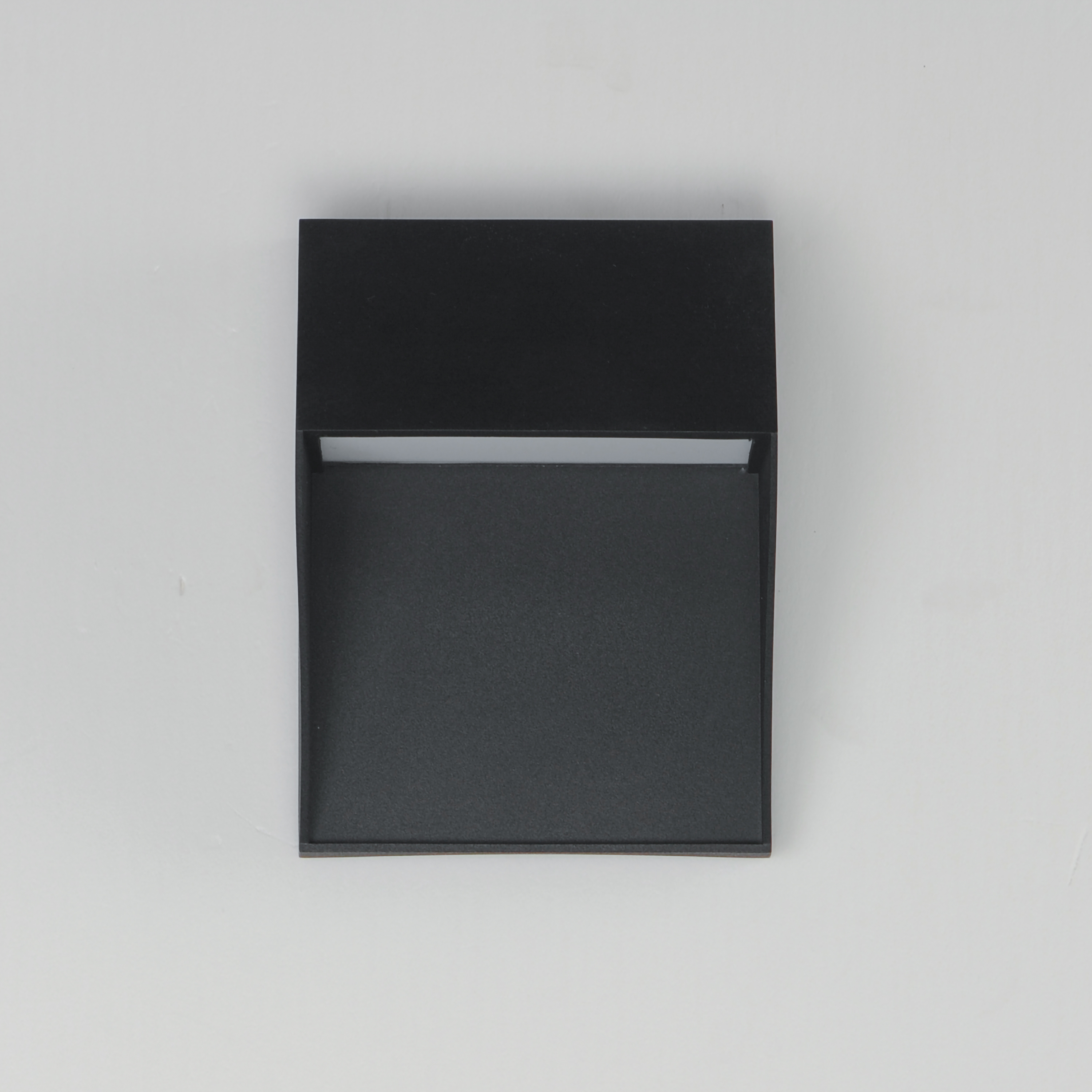

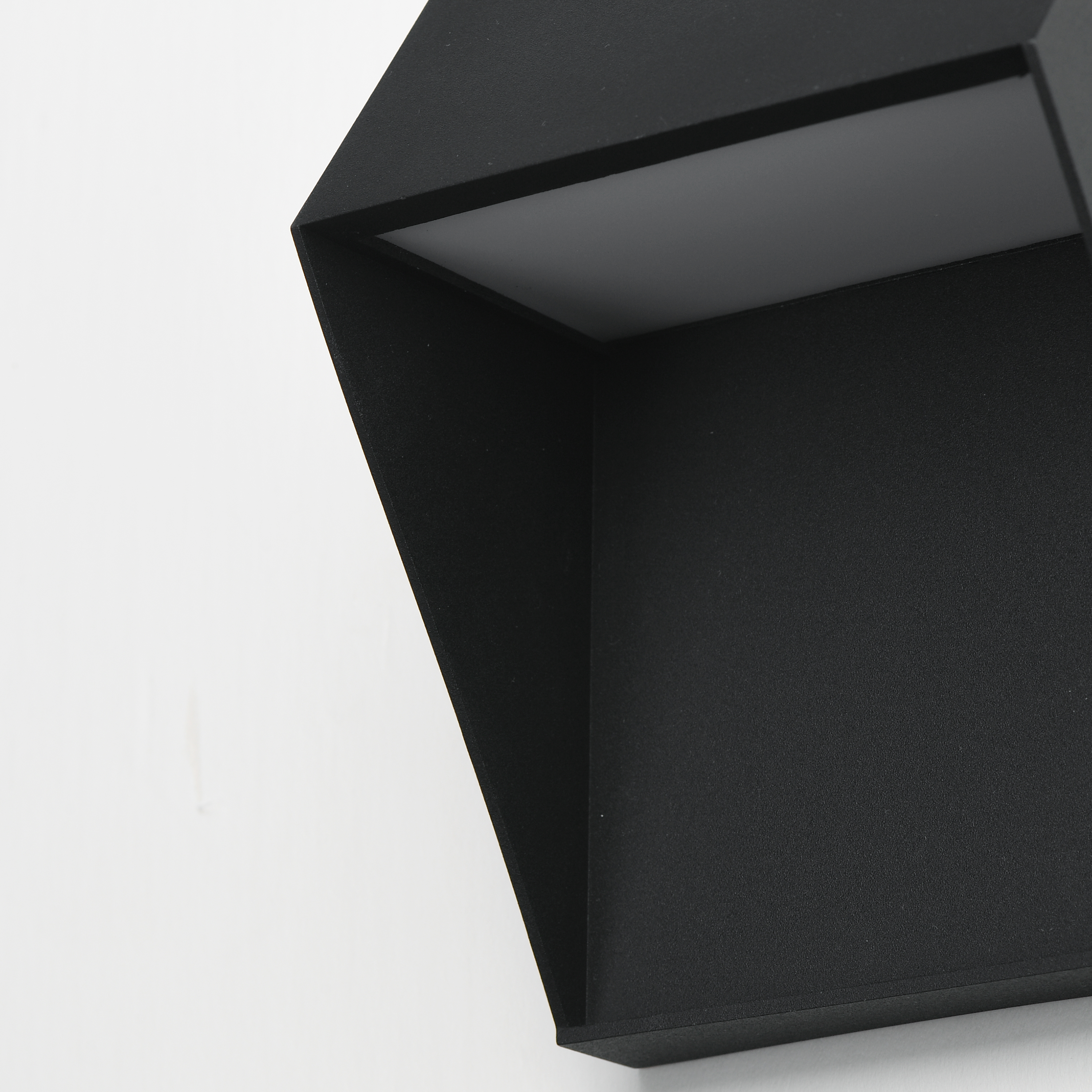

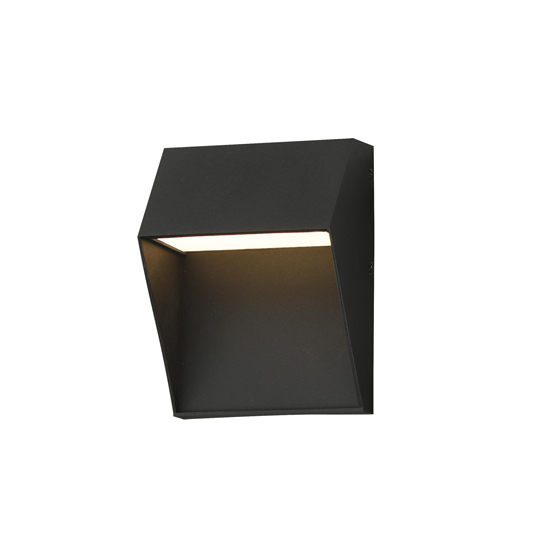

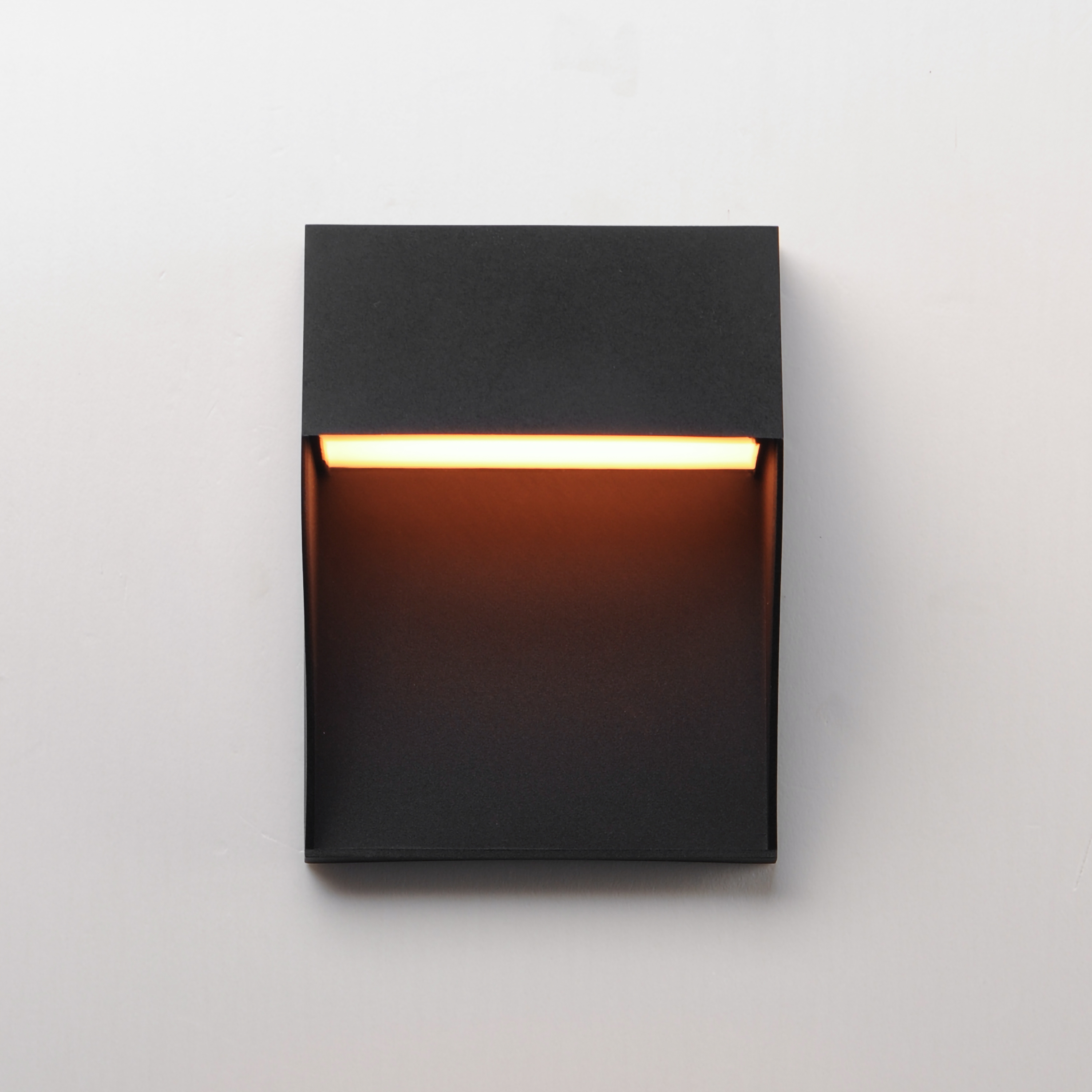

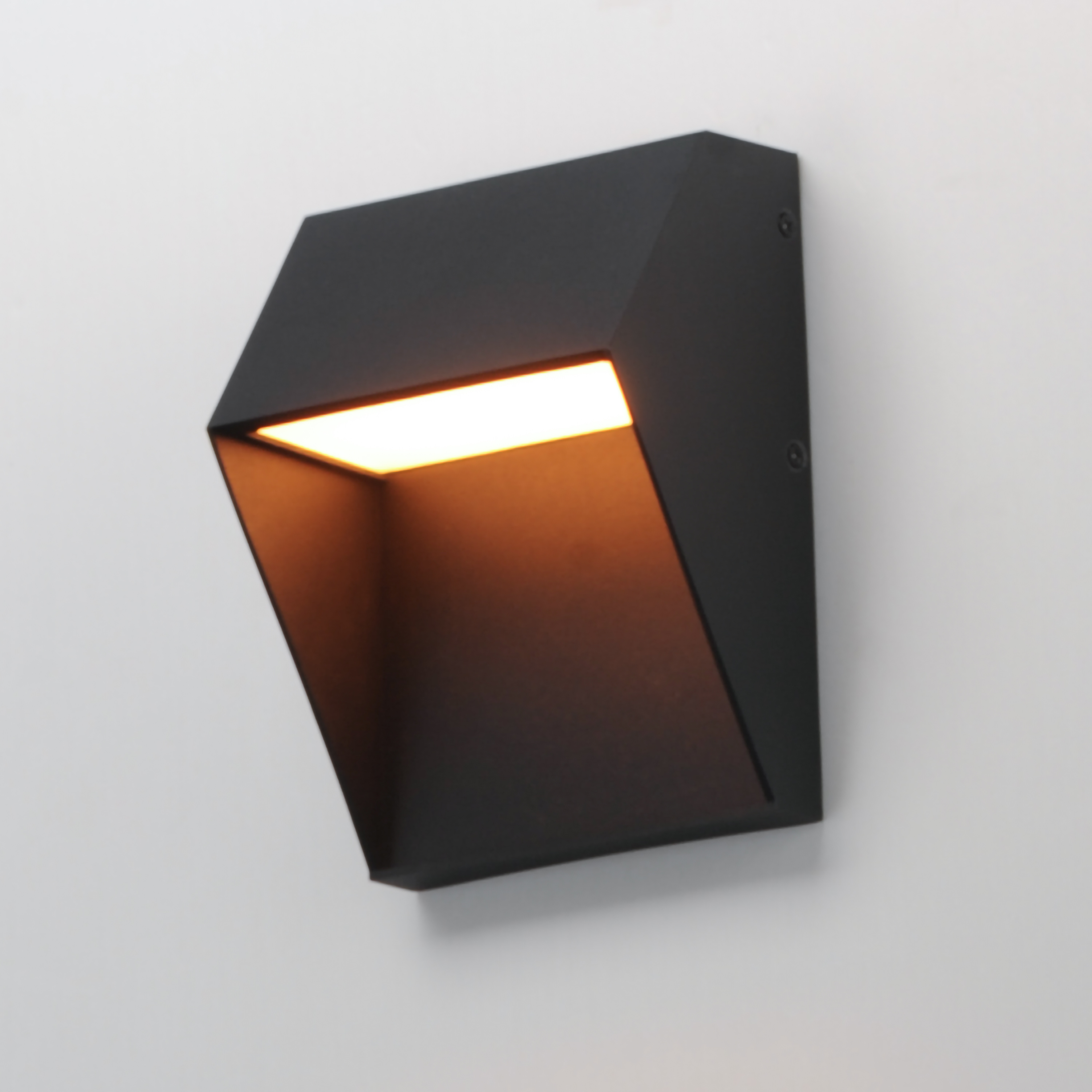

Cliffsdege VX Small LED Outdoor Mini Wall Sconce
Cliffsdege VX Small LED Outdoor Mini Wall Sconce
Cliffsdege VX Small LED Outdoor Mini Wall Sconce
Cliffsdege VX Small LED Outdoor Mini Wall Sconce
Cliffsdege VX Small LED Outdoor Mini Wall Sconce

Cliffsedge VX

Cliffsdege VX Small LED Outdoor Mini Wall Sconce

42132BK
$138.00



Collection: Cliffsedge VX Click for Addtional Information on the Cubic Collection
Type: Outdoor Wall Mount
Material: EPMM,Aluminum,
Acrylic Lens:
Finish: Black BK
Finish


pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 8
Total Wattage: 8
Lighting Direction: Down
Install Up/Down: Down
Rated Life: 35,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 220 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 22-27-30-35-40 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac or ELV at 120V
Input Voltage: 120-277

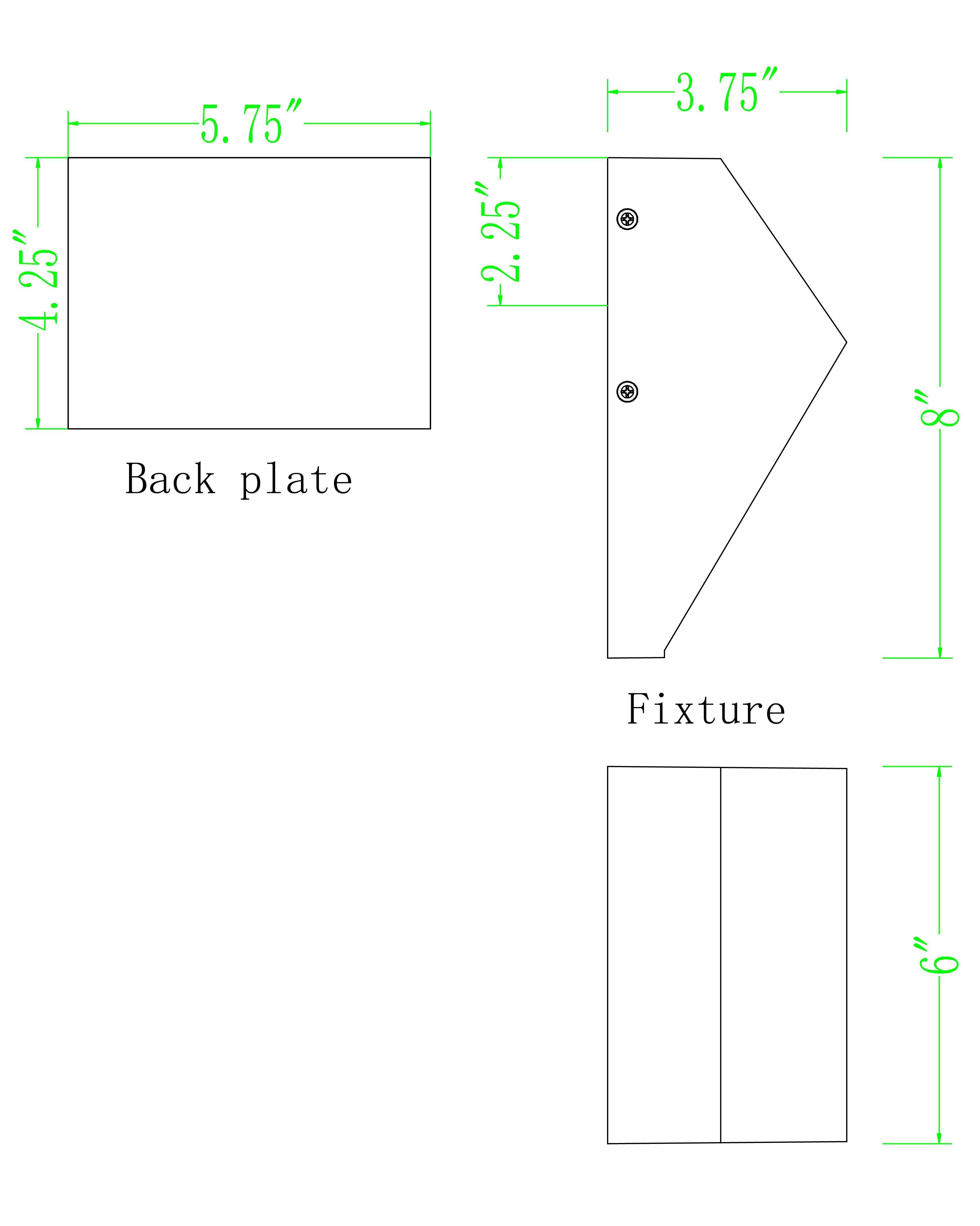

MEASUREMENTS

Width: 6"
Height: 8"
Extension: 3.75"
HCO: 2.25"
BP Width: 5.75"
BP Height: 4.25"
Wire Length: 8"
Hanging Weight: 1.43 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

ADA Compliant: Yes Click for Additional Information on ADA
Finish: Black
Material: EPMM,Aluminum,



Lighting Tips: Outdoor Wall Mount
