Home > Outdoor Wall Mount > Pathfinder LED Outdoor Wall Sconce
52122SV

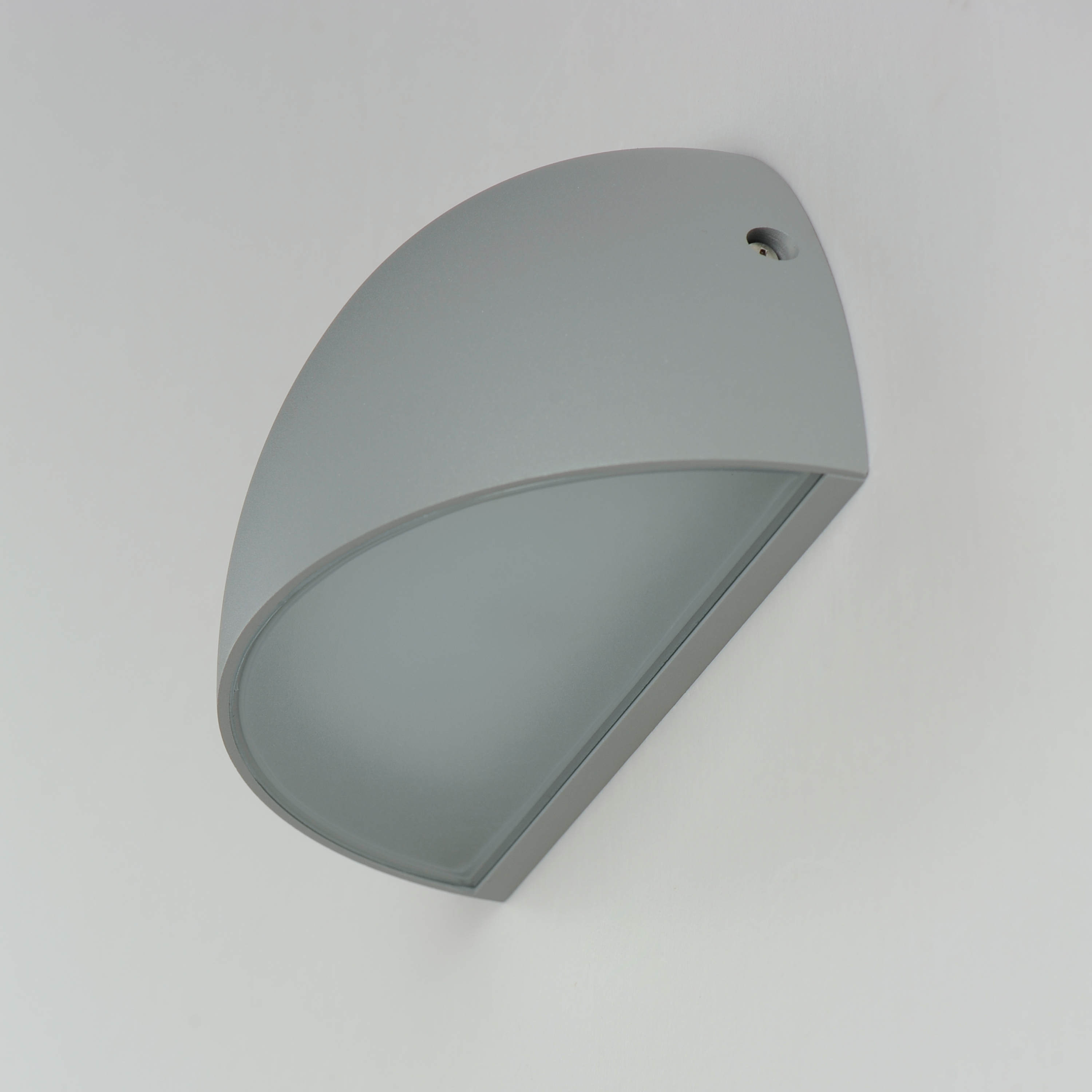

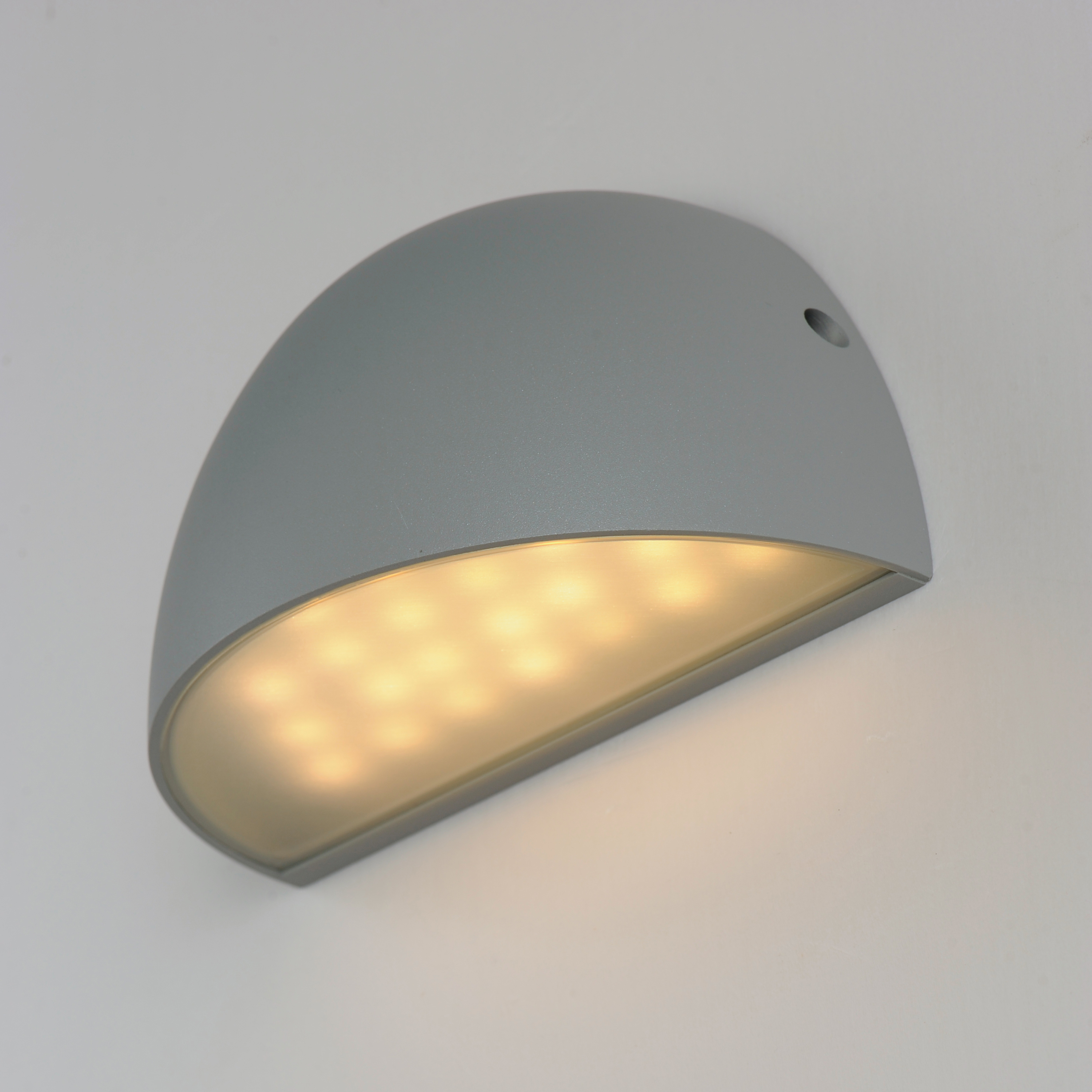

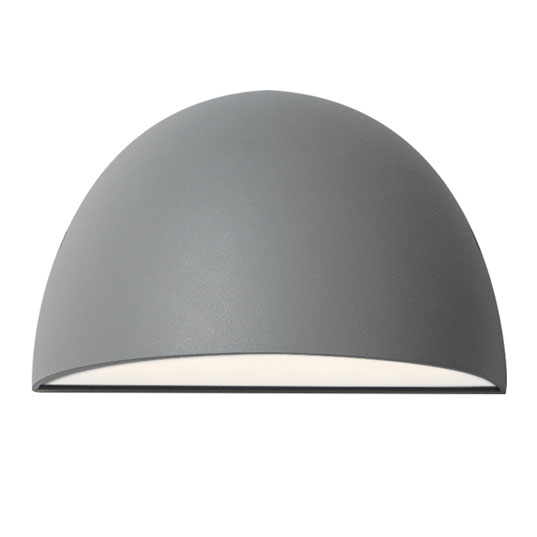

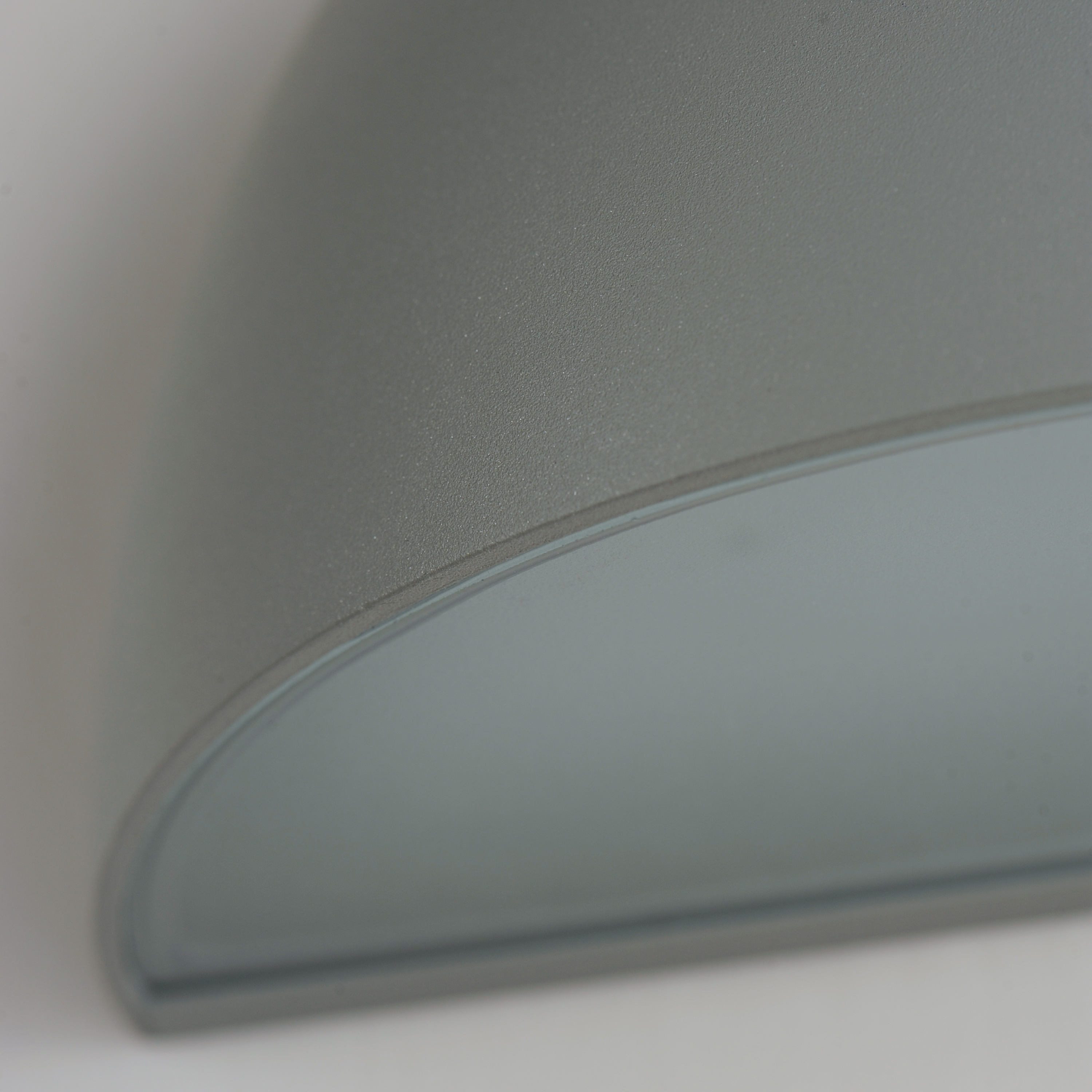

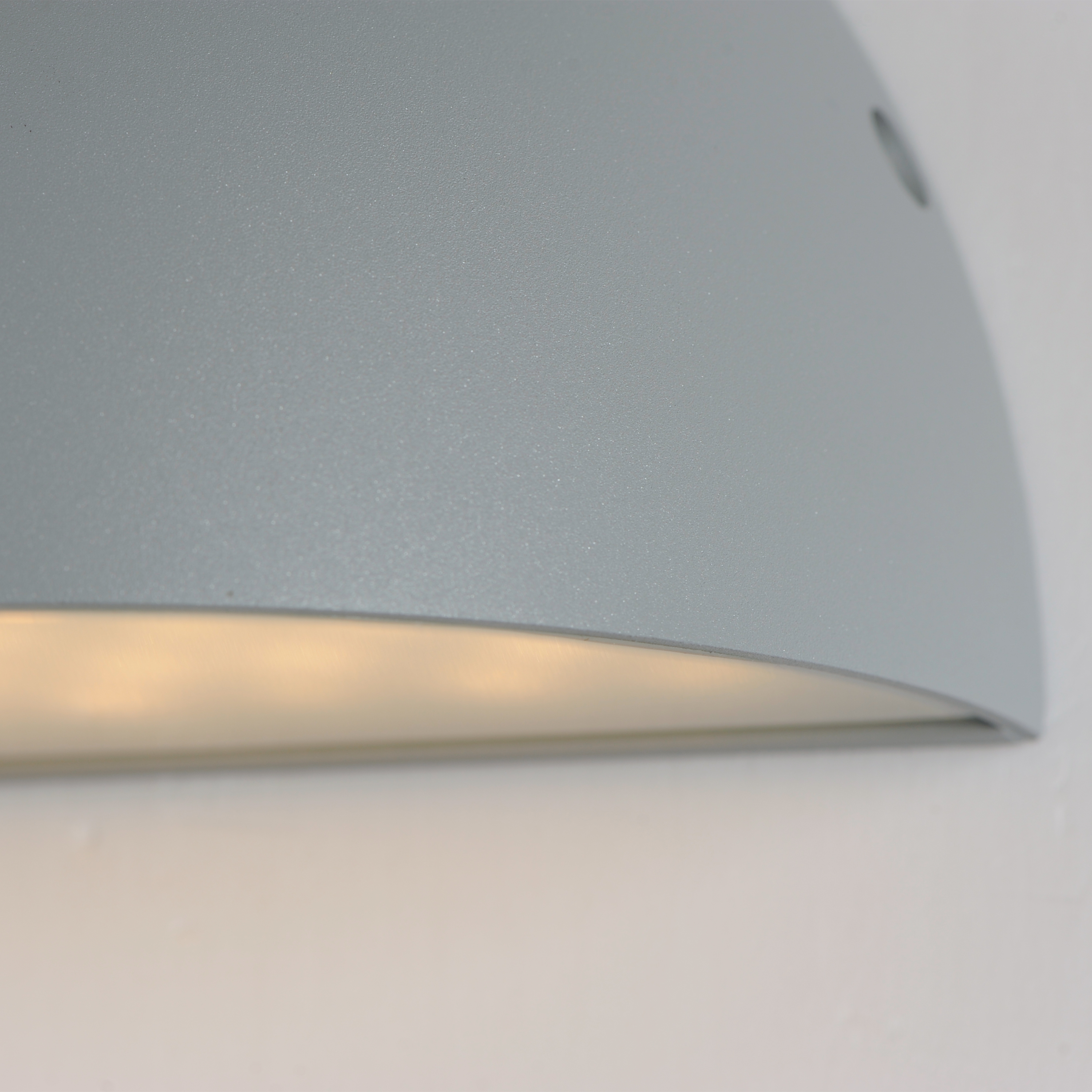

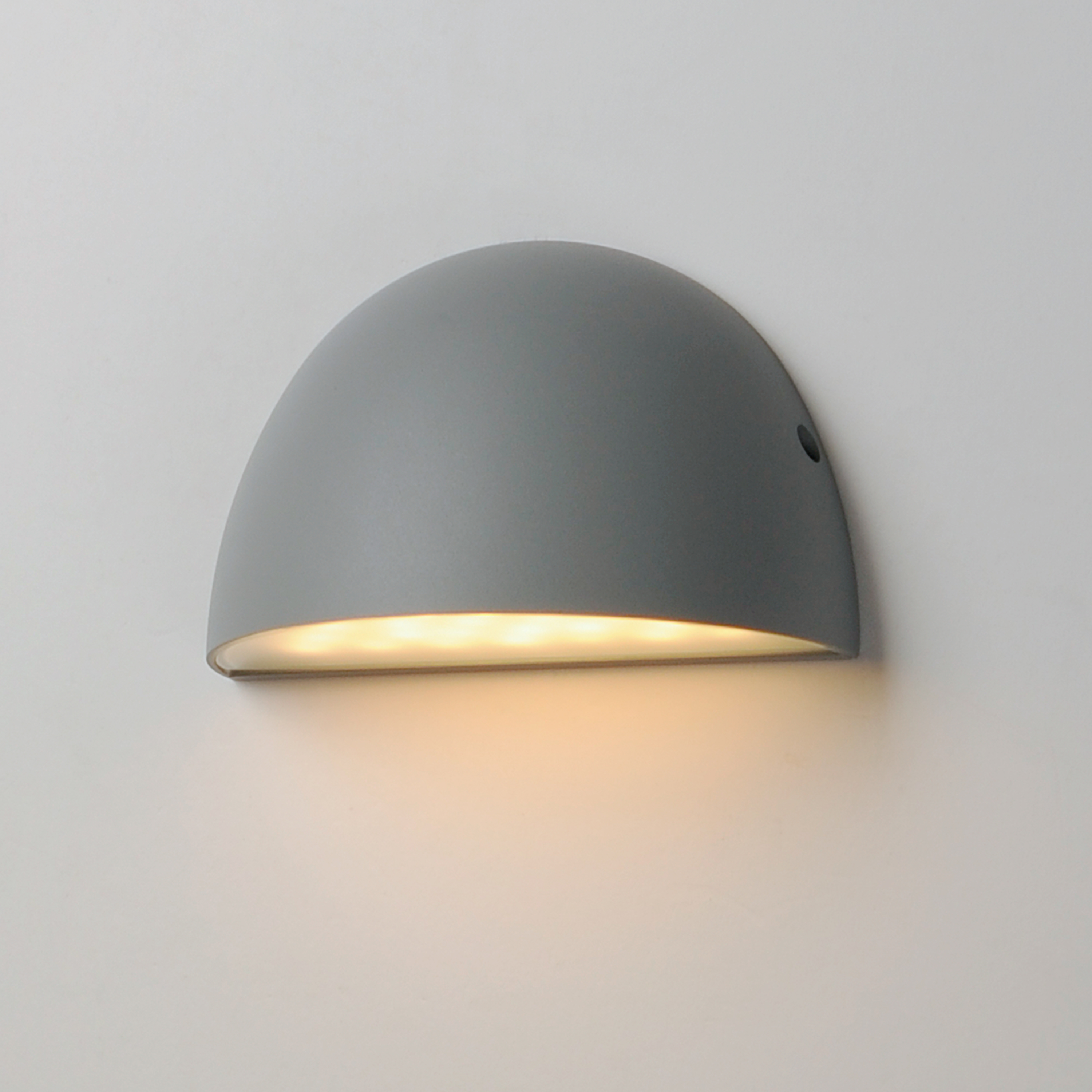

Pathfinder LED Outdoor Wall Sconce
Pathfinder LED Outdoor Wall Sconce
Pathfinder LED Outdoor Wall Sconce
Pathfinder LED Outdoor Wall Sconce
Pathfinder LED Outdoor Wall Sconce

Pathfinder

Pathfinder LED Outdoor Wall Sconce

52122SV
$110.00


With solid Die-Cast Aluminum construction and powered by a range voltage input driver, Pathfinder is a high performance down light for commercial and residential installations. Choose from triangular or spherical profiles as they discreetly extend from the wall. Available with a photocell option, these archetypal forms purposely blend into the architectural landscape creating safer spaces that shine light on locations of interest. Available in Black, Architectural Bronze, or Metallic Sliver
Collection: Pathfinder Click for Addtional Information on the Cubic Collection
Type: Outdoor Wall Mount
Material: Aluminum &Acrylic
Finish: Silver SV
Finish

Accessory Options

pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: PCB Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 15
Total Wattage: 15
Lighting Direction: Down
Install Up/Down: Down
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 820 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 80
Dimmable: Only at 120V with ELV
Input Voltage: 120-277
MEASUREMENTS

Width: 7"
Height: 4.5"
Extension: 3.5"
HCO: 2.25"
Wire Length: 8"
Hanging Weight: 1.4 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
CERTIFICATIONS/ OTHER

Safety Rating: Wet
ADA Compliant: Yes Click for Additional Information on ADA
Title 24: For Outdoor Click for Additional Information on Title 24
Finish: Silver
Material: Aluminum &Acrylic

MAIN



With solid Die-Cast Aluminum construction and powered by a range voltage input driver, Pathfinder is a high performance down light for commercial and residential installations. Choose from triangular or spherical profiles as they discreetly extend from the wall. Available with a photocell option, these archetypal forms purposely blend into the architectural landscape creating safer spaces that shine light on locations of interest. Available in Black, Architectural Bronze, or Metallic Sliver
