Home > Flush Mounts > Diverse 11" LED Flush Mount 3000K
57923WTSN

Diverse

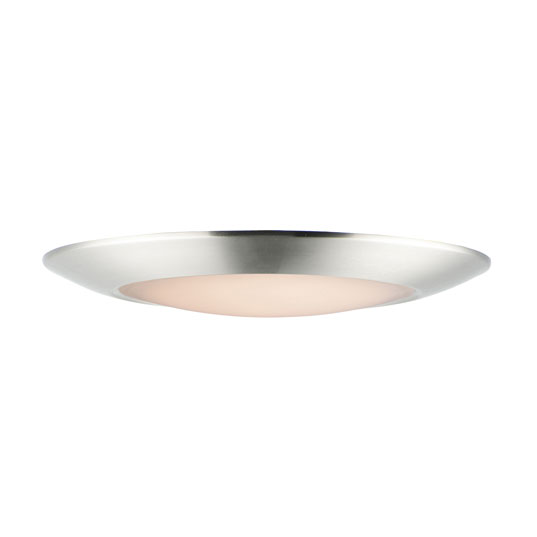

Diverse 11" LED Flush Mount 3000K

57923WTSN
$48.00


This very compact LED flush mount directly installs on any 4" junction box and gives the look of a recessed trim. The Diverse luminaire is dimmable and approved for wet or damp locations so it can be used in virtually any ceiling application, including showers.
Collection: Diverse Click for Addtional Information on the Cubic Collection
Type: Flush Mount
Material: Steel, PC
Finish: Satin Nickel SN
Finish
Parts / Component
ACL57923WT
Acrylic Lens 57923,5 7.24"D x .1.6"H, WT


pdf Specification Sheet
LAMPING

Number of Bulb: 1
Light Type: LED
Bulb Type: AC Integrated An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 20
Total Wattage: 20
Lighting Direction: Down
Install Up/Down: Up
Rated Life: 5,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Delivered Lumens: 1500 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
CRI: 90
Dimmable: Triac CL
Input Voltage: 120

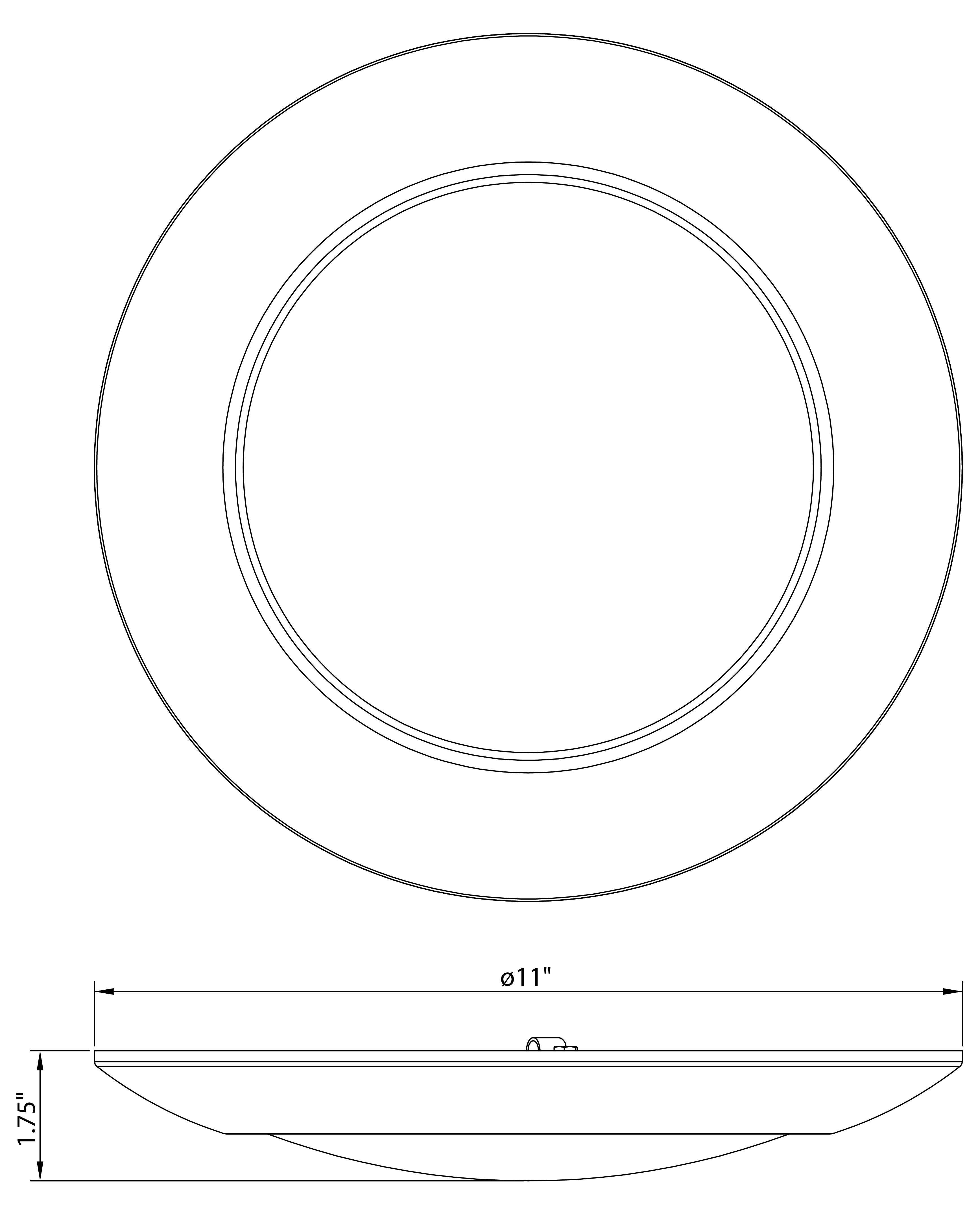

MEASUREMENTS

Width: 11"
Height: 1.75"
Length: 11"
Wire Length: 8"
Hanging Weight: 1.24 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.
Canopy Width: 1"
Canopy Height: 11"
Canopy Length: 11"
CERTIFICATIONS/ OTHER

Safety Rating: Wet
Title 24: JA8 Listed Click for Additional Information on Title 24
Finish: Satin Nickel
Material: Steel, PC



This very compact LED flush mount directly installs on any 4" junction box and gives the look of a recessed trim. The Diverse luminaire is dimmable and approved for wet or damp locations so it can be used in virtually any ceiling application, including showers.

Lighting Tips: Flush Mount
